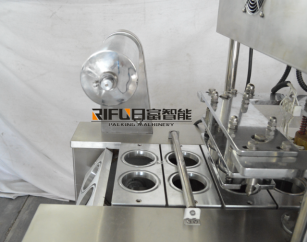

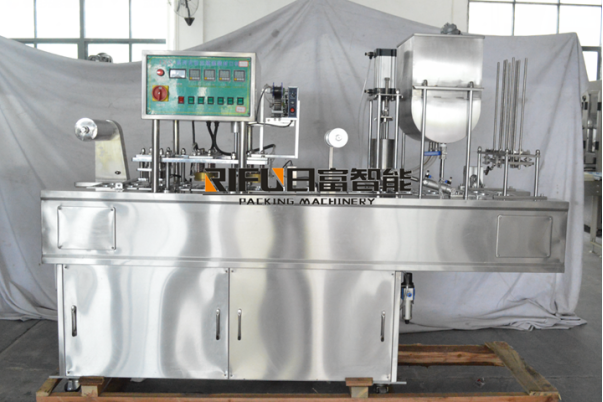

Product description: The machine adopts stainless steel manufacturing, applicable to various shapes of plastic cups,such as round cup,square cup,bottle shaped cup,etc. Mainly used for container liquid filling, sealing, cutting edge, automatic temperature control.Time gravity filling system.
Features: 1.Full automatic,high speed,save labor. 2.Film position correct by electric eye. 3.Integrated control panel,easy operating. 4.Independent temperature control system for film sealing. 5.Automatic electric eye tracking for sealing position correcting. 6.Material contact part made of SS304.
Technical parameters:
Model
RF-2A
Voltage
380V/50Hz（customized）
Power
2.5KW
Packing speed
1600-2000CPH
Output
2 cups/times(can be customized)
Temperature range
0-400℃
Sealing material
PE PP PET/PE,etc.
Outline dimension
2200*700*1700(mm)（L×W×H）
Net weight
500kg
Working process：

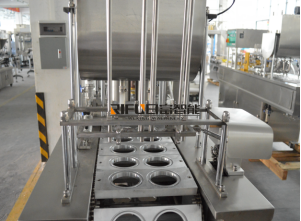

→ Auto feeding cups onto machine conveyor belt(some cup cant do it,need check the samples before production) → Auto fillingliquid product

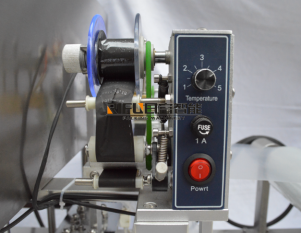

→Printing expiring date on the film(optional) → Auto feeding film and twice heat sealing . → Automatic output final cup
