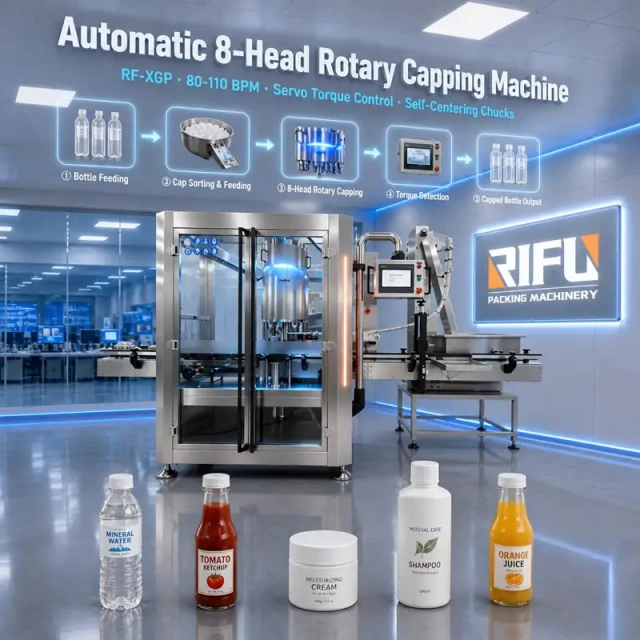

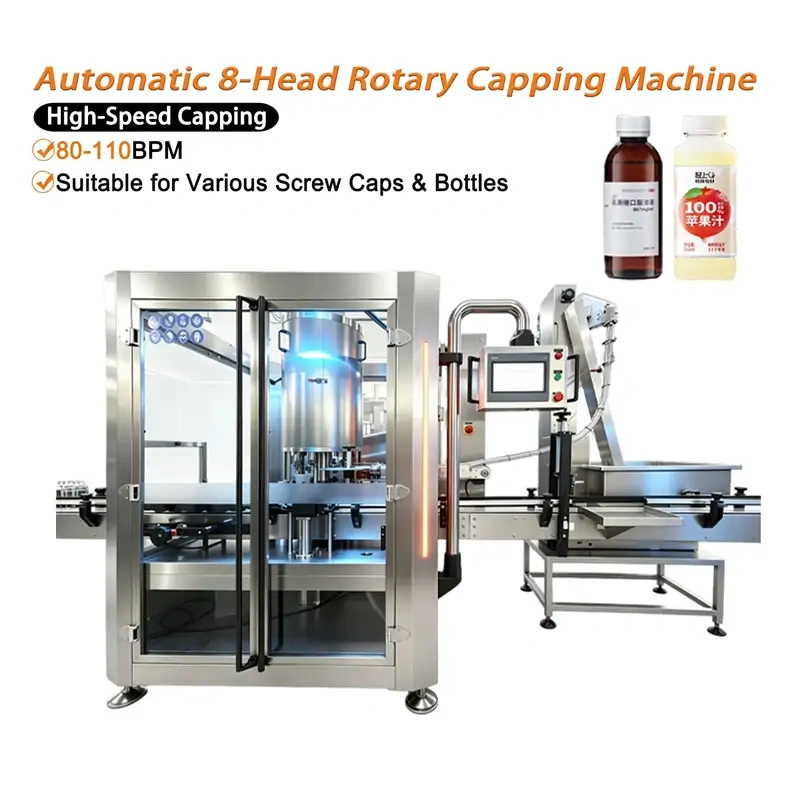

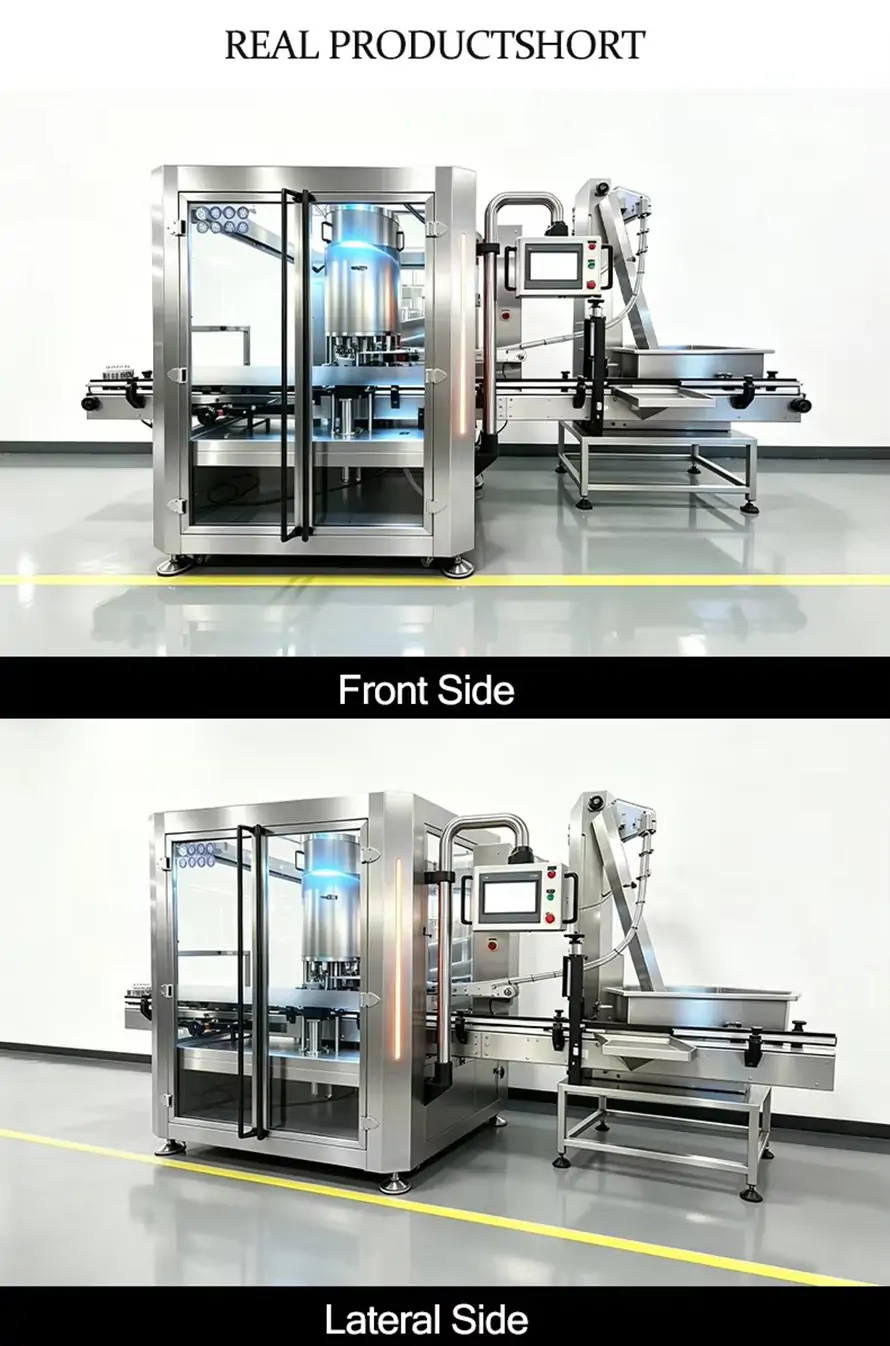

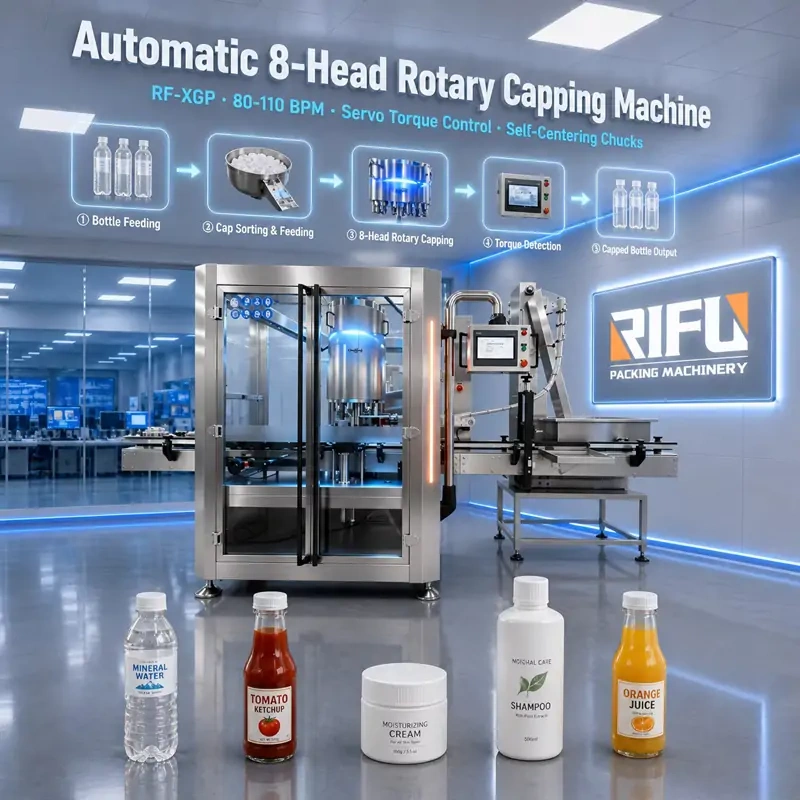

Product Overview Automatic 8‑head rotary capping machine is a turret‑type high‑speed automatic capping solution for continuous bottling production. Different from ordinary pneumatic capping machines, the optional servo torque control system realizes accurate torque adjustment, avoiding cap slipping, cracking or insufficient tightening.
Equipped with automatic cap elevator and sorting mechanism realize non‑stop cap feeding. Adopt PLC & touch HMI for recipe storage, parameter quick setup, supporting Chinese‑English bilingual interface. Whole machine main material SUS304 stainless steel, compliant with food‑grade requirement.

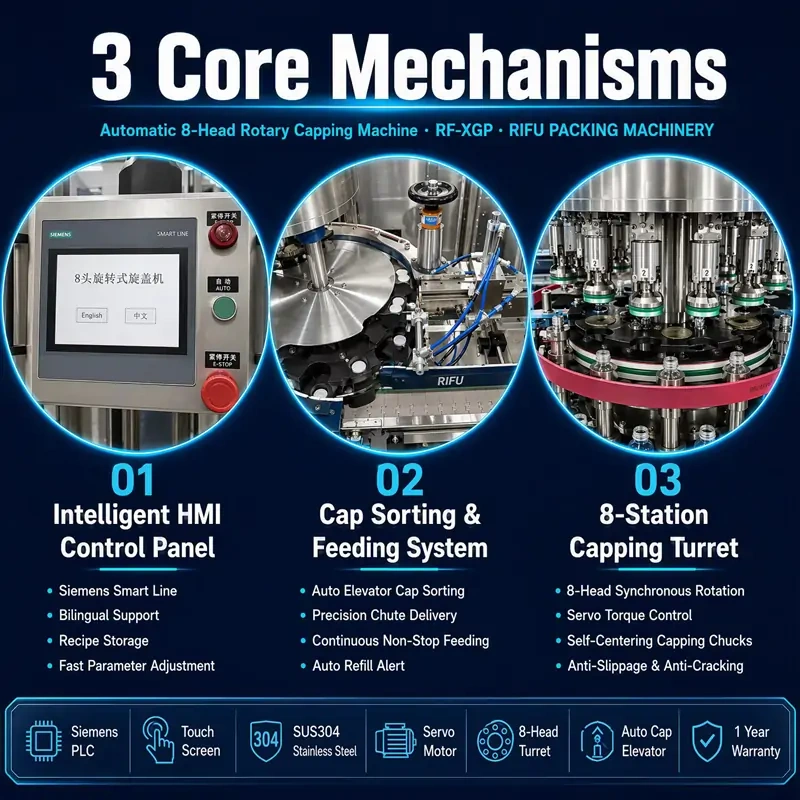

Core Advantages

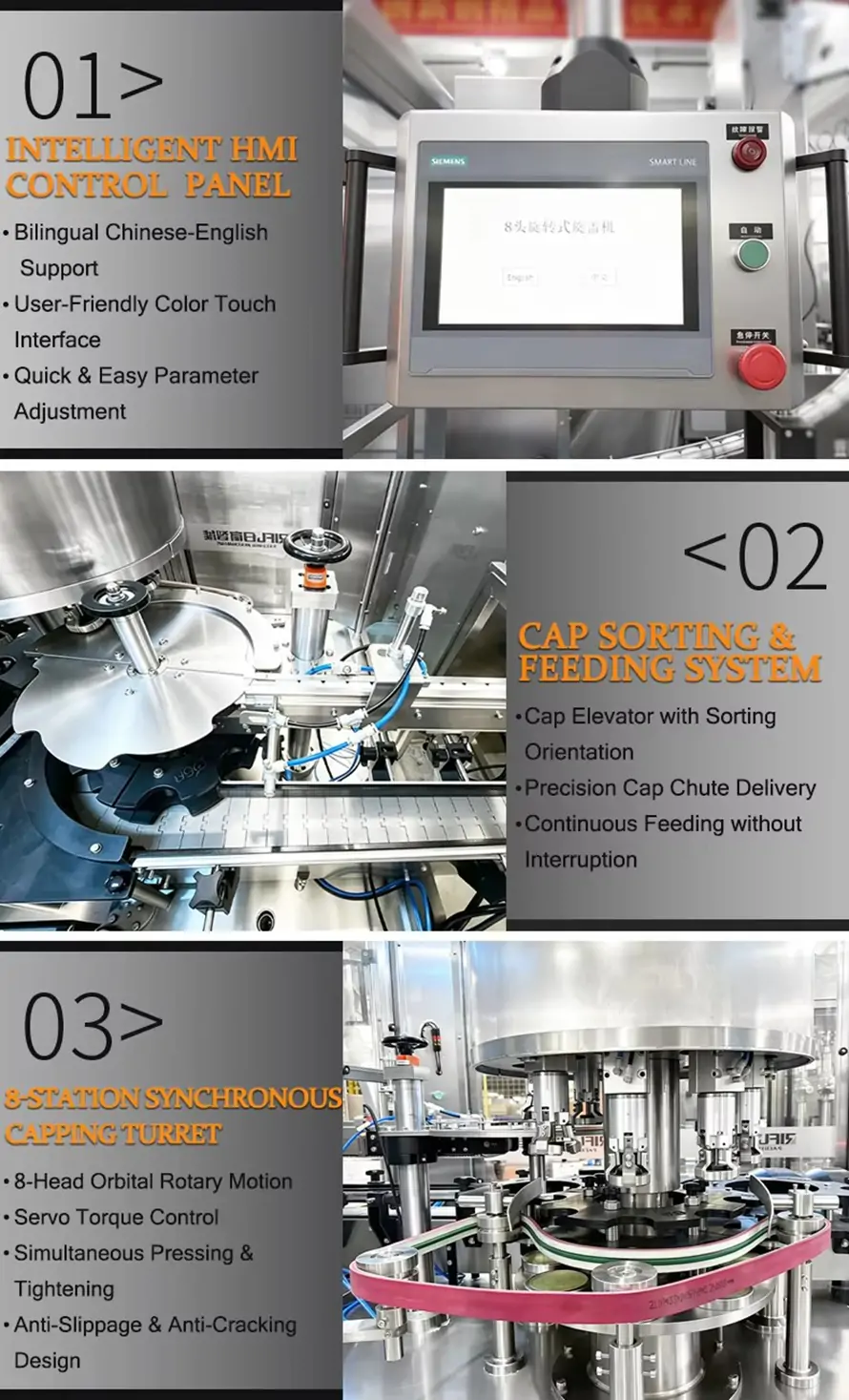

✅ Servo Torque Control(Optional) Adjustable tightening torque, anti‑slip & anti‑crack, no damage to caps and bottles✅ 8‑Station Synchronous Capping Turret
Rotary main‑shaft drives 8 floating capping chucks. Servo adjustable torque enables simultaneous press‑down capping, avoiding cap slippage and neck cracking for stable high‑speed output.
✅ Auto Cap Sorting & Feeding System Automatic cap lifting, orientation sorting, uninterrupted cap supply✅ Siemens Intelligent Control System Bilingual touch screen, recipe memory, one‑click parameter switching✅ Food‑Grade SUS304 Construction Corrosion‑resistant, easy‑to‑clean, fit food, beverage and cosmetic industries
Applicable Products Suitable for screw caps of plastic bottles, glass bottles, plastic jars: Beverage, fruit juice, sauce, condiment, edible oil, cosmetic lotion, cream jar, shampoo & daily‑chemical products.

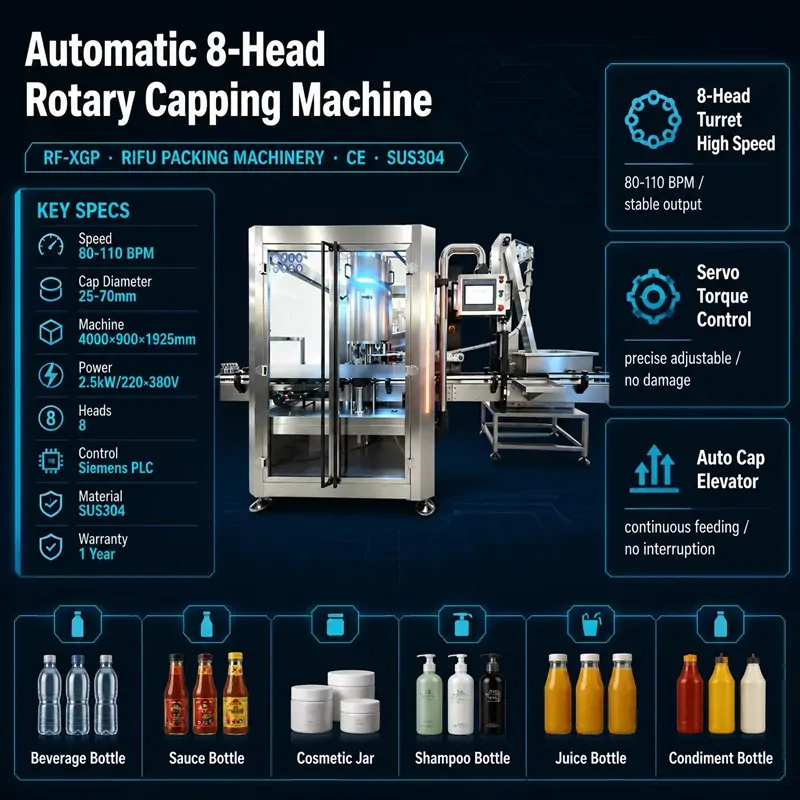

Parameter
Machine Material
SUS304 / SUS316L Stainless Steel
Capping Heads
8 Stations
Production Speed
80–110 BPM
Cap Diameter Range
25–70 mm (round screw caps)
Suitable Bottle Height
50–300 mm
Torque Control
Servo Torque Control
Cap Feeding
Automatic Cap Sorting & Elevator Feeding
Control System
Siemens PLC + Smart HMI Touch Screen
Voltage (V/Hz)
220V/380V, 50/60Hz (customizable)

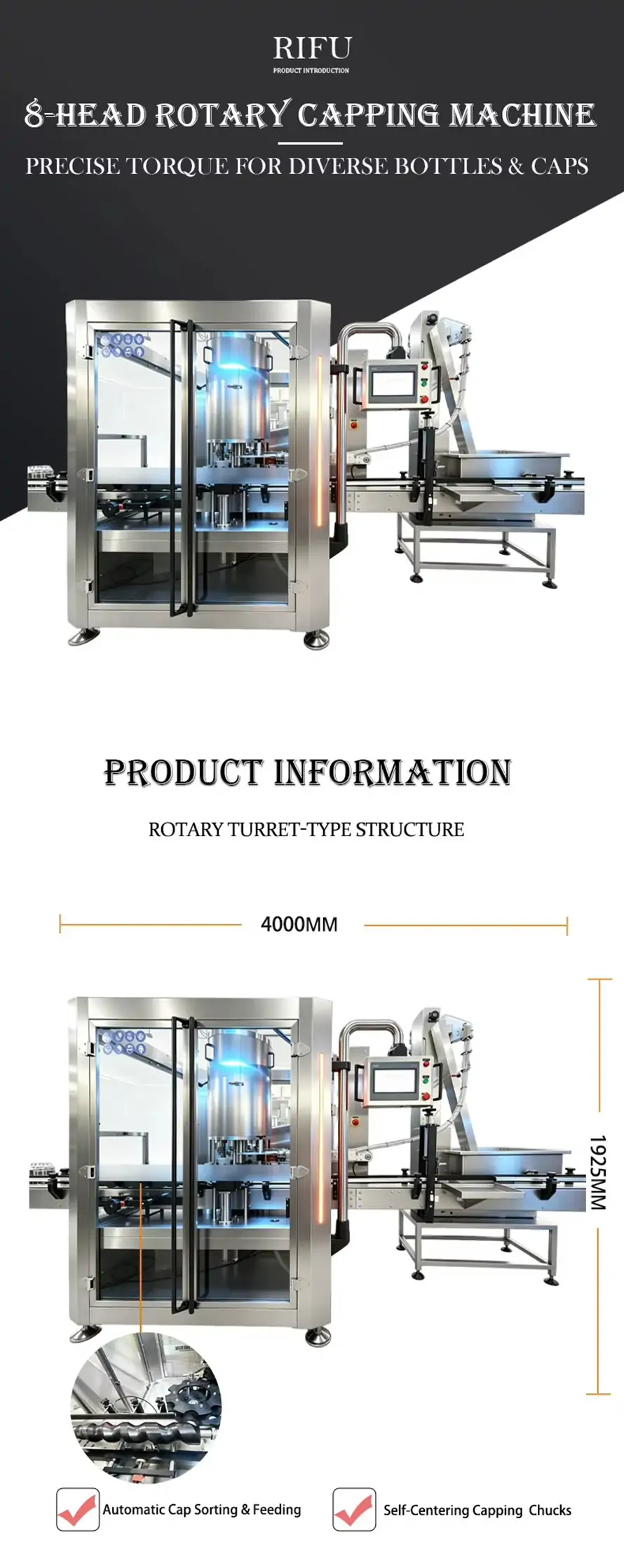

Machine Dimensions
4000 × 900 × 1925 mm
FAQ
Q1: Can this machine work for different cap sizes? Do I need to change moulds?
A1: It fits round screw caps within 25‑70 mm. Minor size adjustment can be done via setting. When switching to cap sizes with big difference, replacement of chuck silicone sleeves is required. Special‑shaped caps are not supported.
Q2: What bottle types can this capper handle?
A2: Suitable for round plastic & glass bottles for beverage, juice, sauce, condiment, cosmetic cream jars and shampoo.
Q3: What is the production speed?
A3: 80‑110 bottles per minute, actual output depends on bottle‑cap condition and operator setting.
Q4: Does the machine support multi‑language operation?
A4: Siemens HMI supports Chinese & English bilingual interface. Other languages can be customized.
Q4: What is your warranty term?
A4: 1‑year warranty for main components (exclude quick‑wear spare parts). Lifelong technical support is available.
Q5: Can you customize the machine for my special production line?
A5: Yes. We support custom modification for bottle size, layout and connection with upstream / downstream filling machines. Send your sample bottles & caps for best quotation.
Q6: Do you provide overseas installation & commissioning? A6: Remote online guidance is included. Overseas on‑site service is available at extra labor & travel cost.
