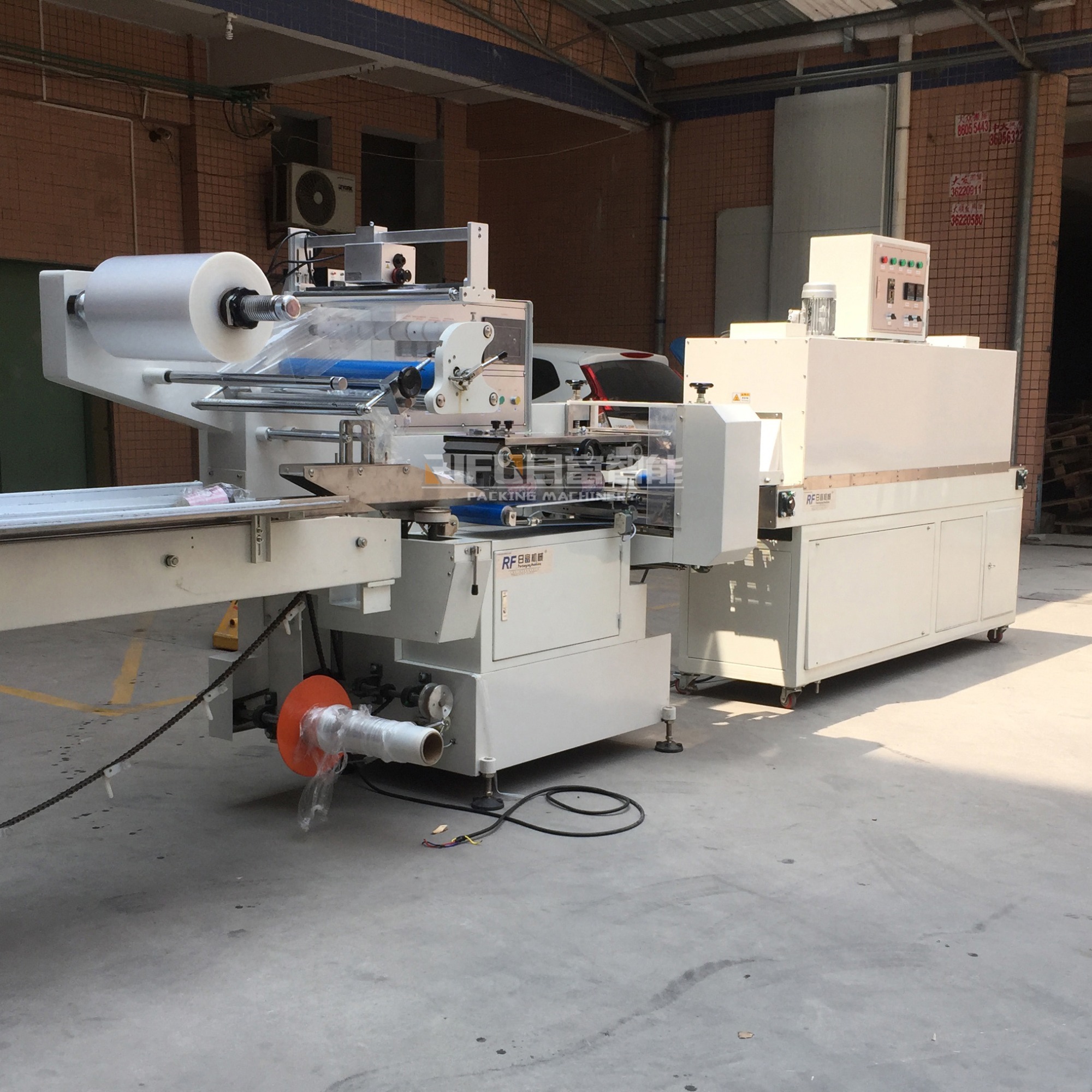

Pillow type heat shrink packing machine

Item No.: RF-FQB
Min.Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Guangzhou
Payment Terms: T/T,Western Union,paypal

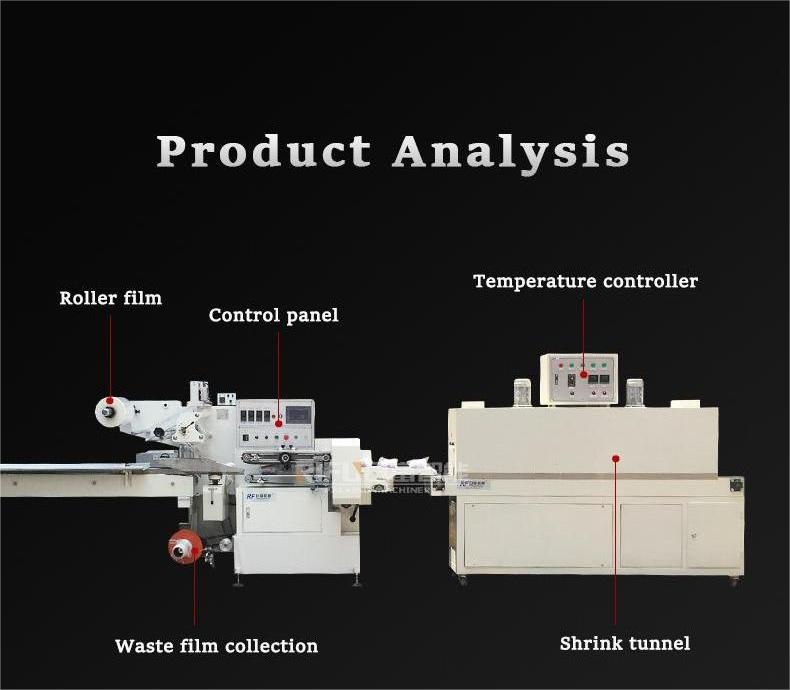

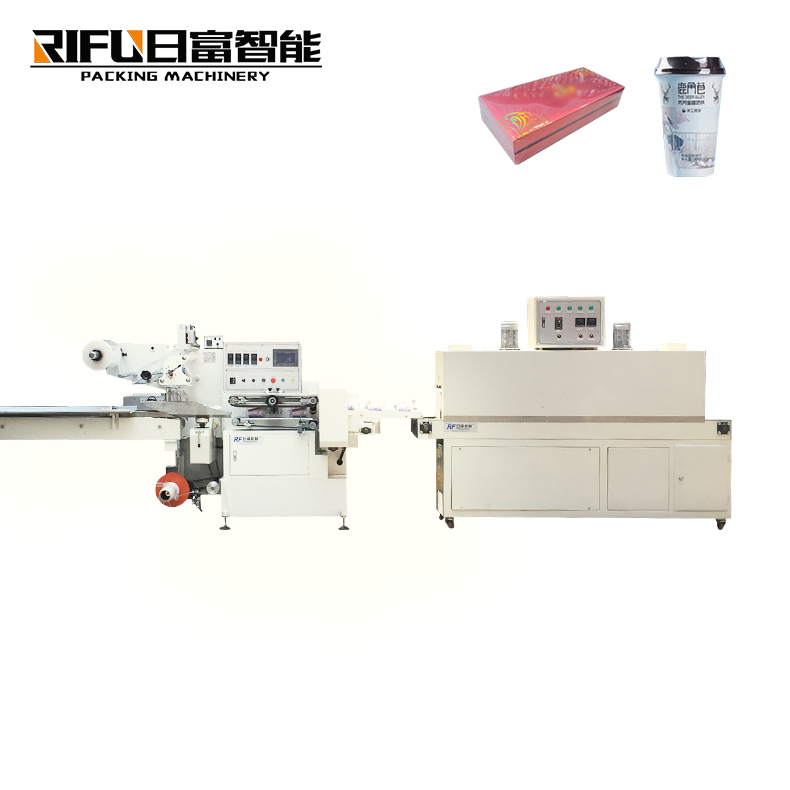

Pillow type heat shrink packing machine

This machine is flow pack type shrink packing, which is more efficient than L sealer. Suitable for the packaging of pet products, bread, cakes, moon cake, instant noodles, biscuits, snacks, pies, boxed foods, candy, toys, capsules tablets, cosmetics, cards, etc. The packing film can be PVC, POF, PE material.

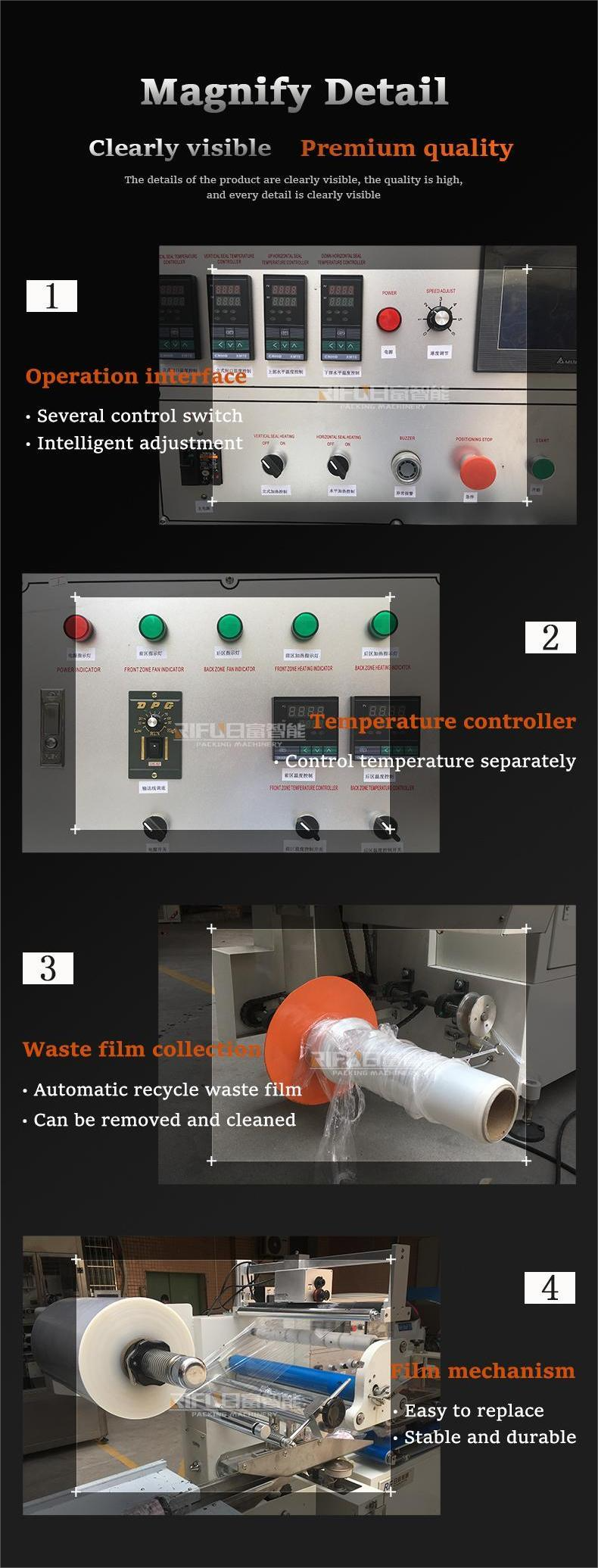

1. PLC programmable controller, high precision, high performance and stability.

2. Heat tunnel efficient dual temperature zones, efficient hot air circulation, and automatic temperature control, ensure the shrink quality.

3. Color touch screen control system, easy operation. The PLC control system make this machine stable performance, reliable, low failure rate. Bag length, speed and temperature can be individually adjusted, easy to operate and accurate.

4. Sensor tracking device, paperless automatic parking, bag length and the cut-off point accurate.

5. High-performance operation, significantly reducing labor costs.

6. Product contact surfaces of stainless steel or plastic material.

7. Optional: automatic feeding system, date printer, stainless steel chassis.

Max. film width ≤590(mm)
Bag length 180-530mm
Product width (mm) 30-200mm
Product height (mm) 50-130mm
Packing speed 30-150 bags/min
Film material PVC, POF, OPP, PE etc.
Power 3.6(KW)+16.5(KW)
Power supply Main machine 220V, 50HZ; Shrink machine 380V,50HZ
Machine size(L*W*H) Main machine 5000×965×1750 MM
Shrink machine 2500×600×1700 MM
Machine weight Main machine: 100KG   Shrink machine: 600KG
