Product Overview

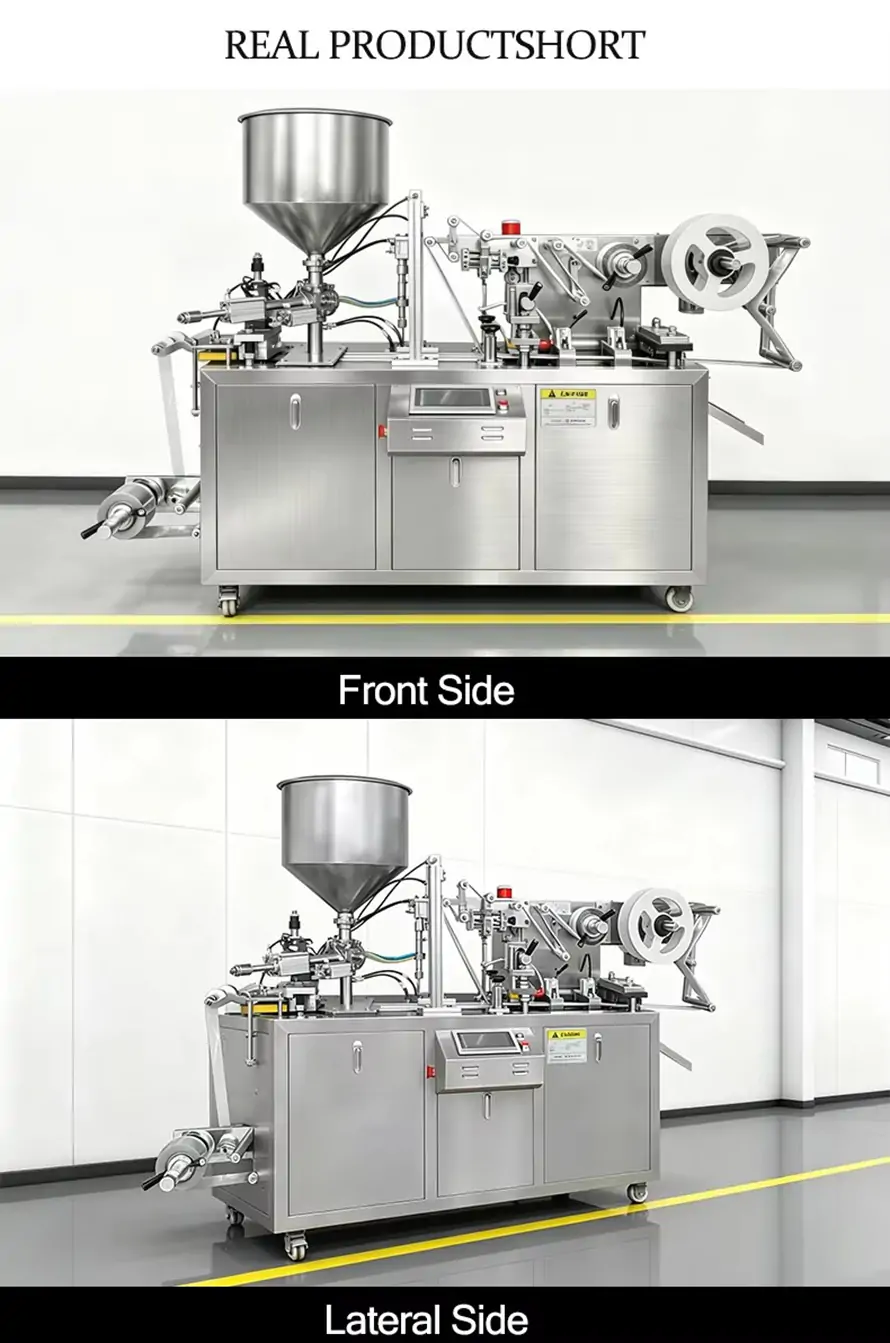

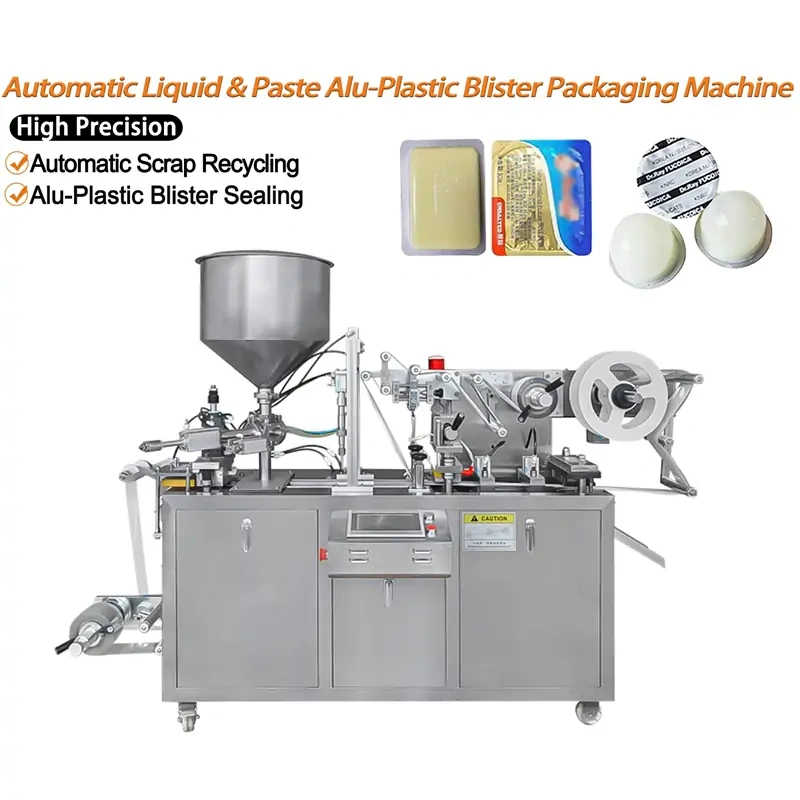

Automatic alu‑plastic blister packaging machine is built for single‑serve liquid and paste blister packs. It handles honey, ketchup, syrup, mouthwash, cosmetic cream samples, oil and other viscous products. The all‑in‑one design completes PVC forming, precise filling, alu‑plastic heat sealing, finished‑product punching and scrap recycling automatically, greatly improving production efficiency.
Key Features

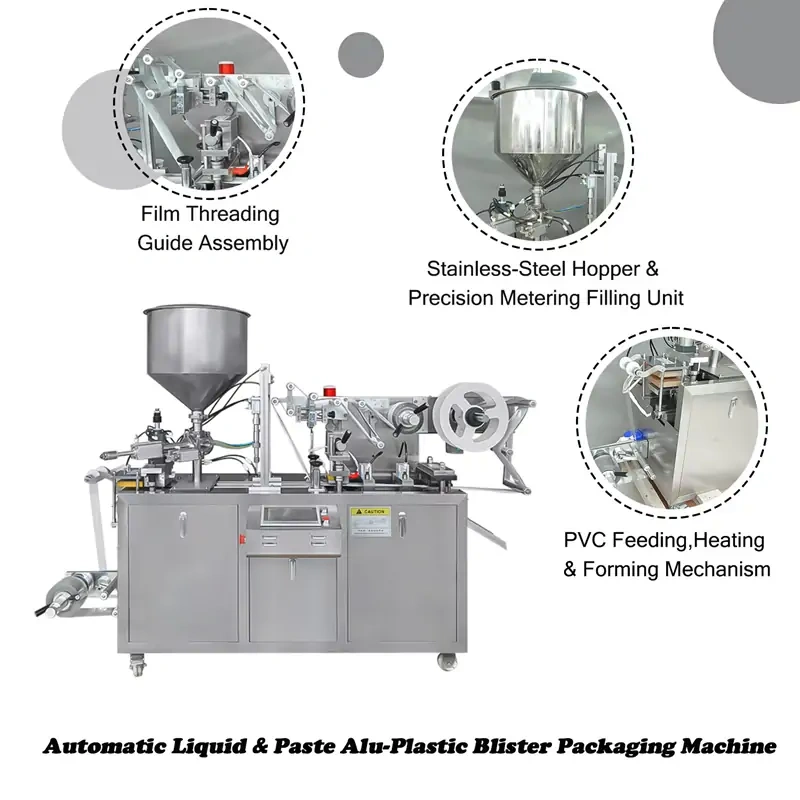

✅ High‑precision metering filling unit, stable dosing for liquid & paste materials
✅ Stainless‑steel material contact parts, food‑grade compliant
✅ Uniform heat‑sealing pressure, reliable leak‑proof sealing performance
✅ Customizable blister molds for different pack sizes & shapes
✅ PLC + touch‑screen control, easy parameter setup and operation
✅ Automatic scrap‑film winding & recycling, keep production area tidy
✅ Compact overall structure, save workshop floor space
✅ Easy maintenance and quick part change‑over for different products

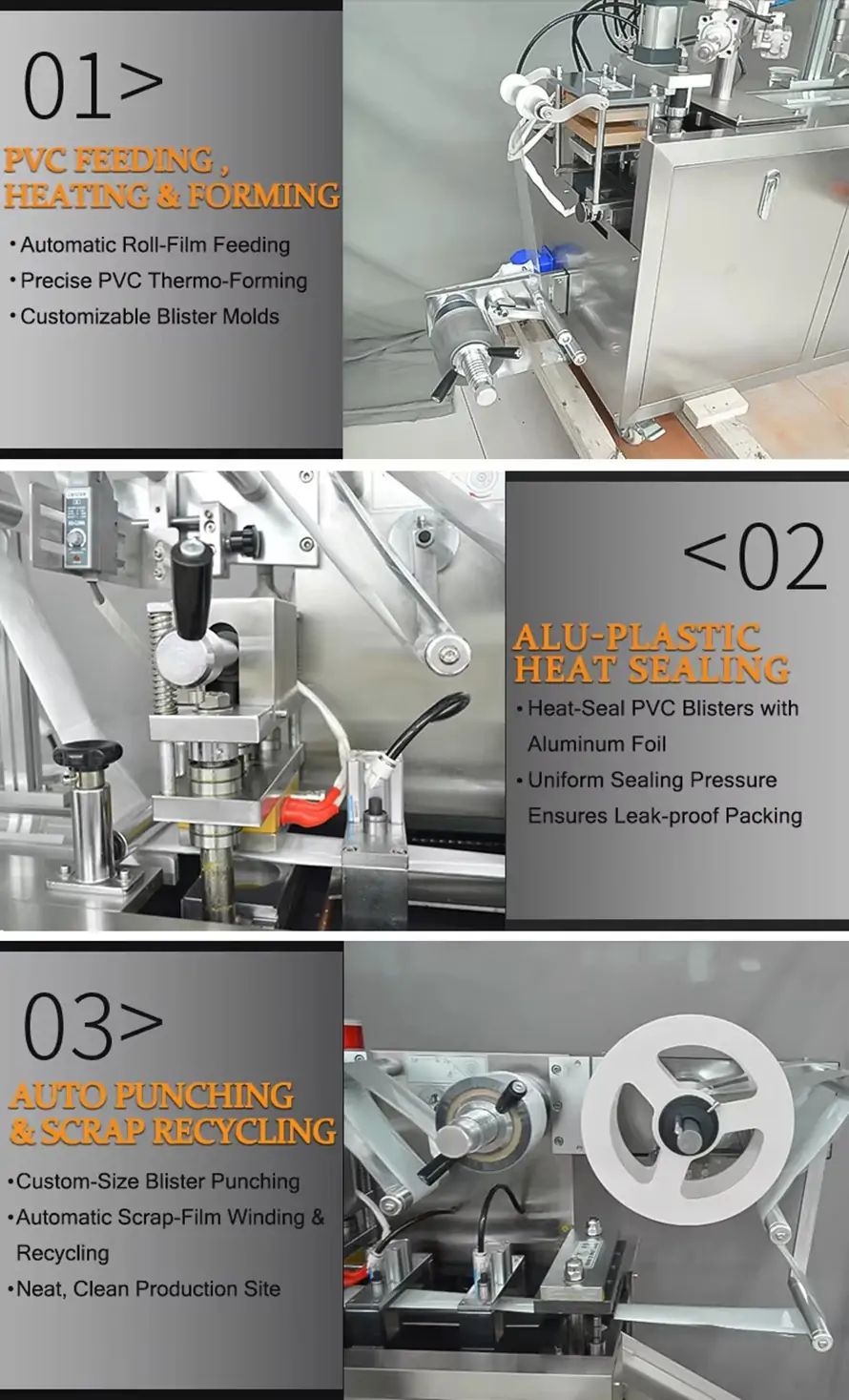

Working Principle

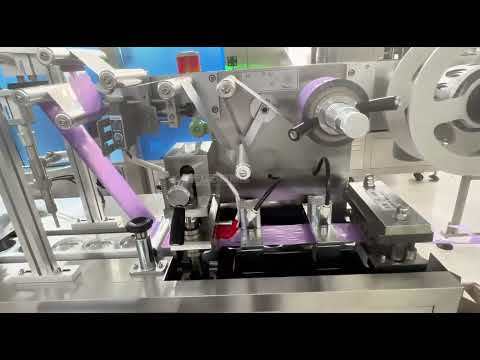

PVC film feeding & heating thermo‑forming to form blister cavities
Precision filling of liquid or paste material into blister cavities
Aluminum foil heat‑sealing to seal blister cavities tightly
Automatic punching to separate finished blister units
Scrap film collected by automatic winding mechanism

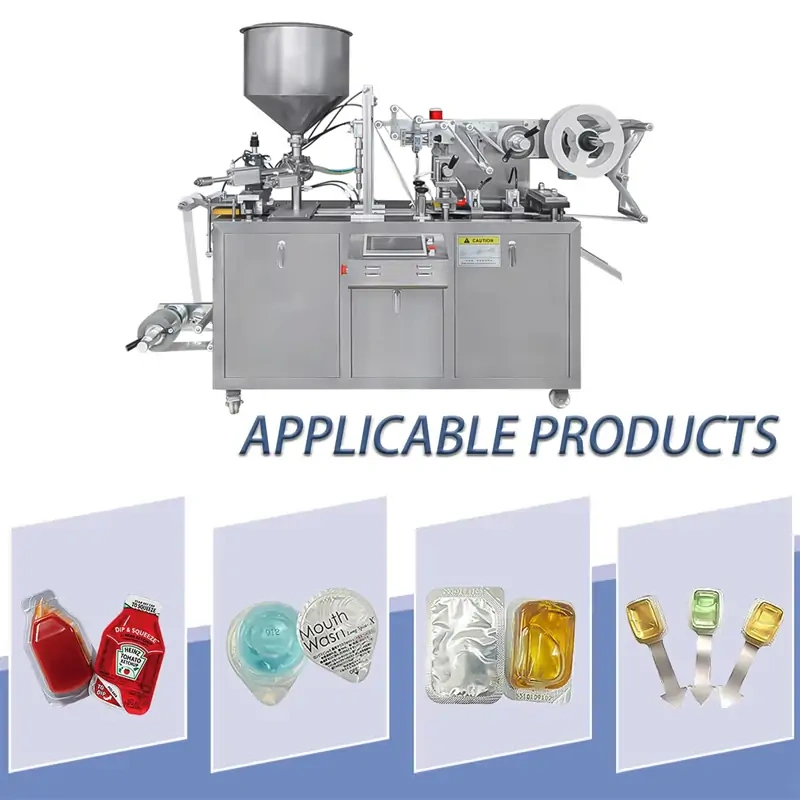

Applicable Products
‑ Food: honey, sauce, ketchup, syrup, edible oil, condiment single‑dose packs
‑ Personal care: mouthwash, cosmetic samples, cream, essential oil
‑ Daily‑chemical and other viscous liquid & paste single‑portion packaging
Parameter
| Dosing Method | Piston pump metering |
| Punching Frequency | 10‑33 times/min |
| Max Output Capacity | 2400 plates/hour (depends on blister layout & material viscosity) |
| Max Forming Area & Depth | 105×70 mm; standard depth ≤15 mm, max depth 25 mm (custom mold) |
| Adjustable Travel Range | 30‑80 mm (customizable) |
| PVC Film Specification | 0.15‑0.5 mm × max width 110 mm |
| PTP Aluminum Foil | 0.02‑0.035 mm × max width 110 mm |
| Air Supply Pressure | 0.4‑0.6 MPa |
| Power Supply | 220V/380V, 50‑60Hz |

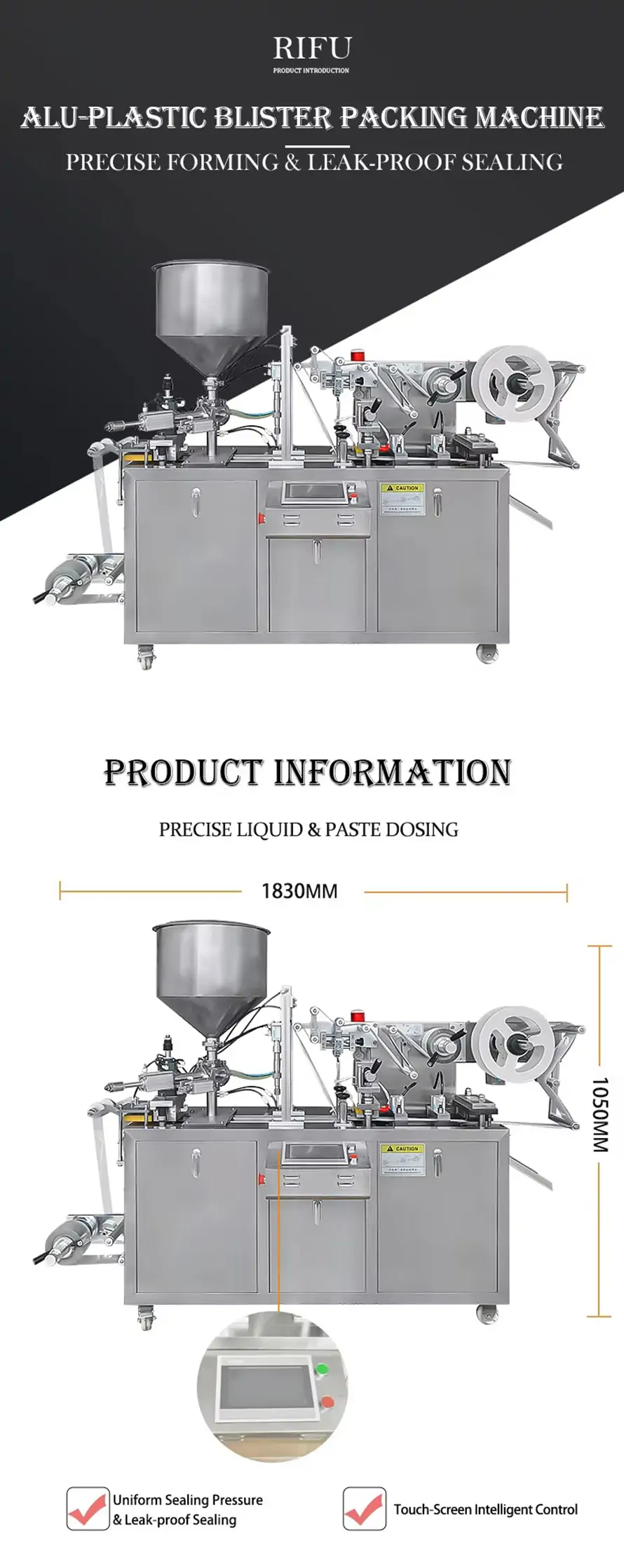

| Overall Dimension(L×W×H) | 1830×720×1050 mm |
| Machine Weight | Approx. 480 kg |
Q1: What products can this DPP‑80 blister machine pack?
A1: Liquid & paste such as honey, garlic sauce, syrup, mouthwash, cosmetic cream, paste with fine particles. Not for powder or hard granules.
Q2: What is the filling volume range?
A2: No fixed standard range. Filling volume is customized by piston pump according to your required ml. Please inform us your target volume.
Q3: What is the production speed?
A3: 10‑33 cycles/min, max 2400 plates/hour. Actual output depends on blister layout and material viscosity.
Q4: Are blister molds included?
A4: Molds are not included. Custom molds are made based on your blister size & shape. Please offer samples or drawings.
Q5: What film materials are compatible?
A5: PVC:0.15‑0.5 mm, max 110 mm width; PTP aluminum foil:0.02‑0.035 mm, max 110 mm width. Special films need confirmation.
