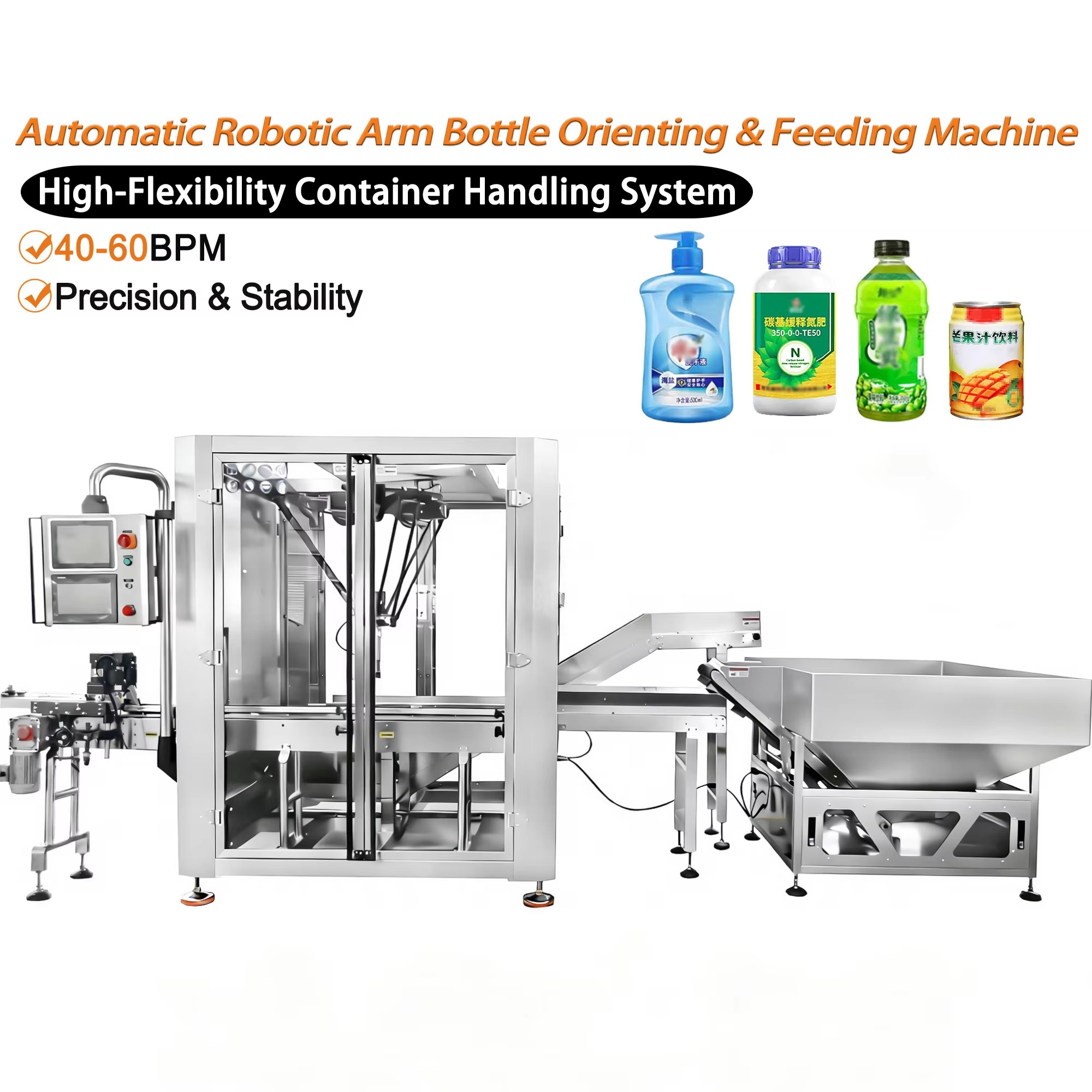

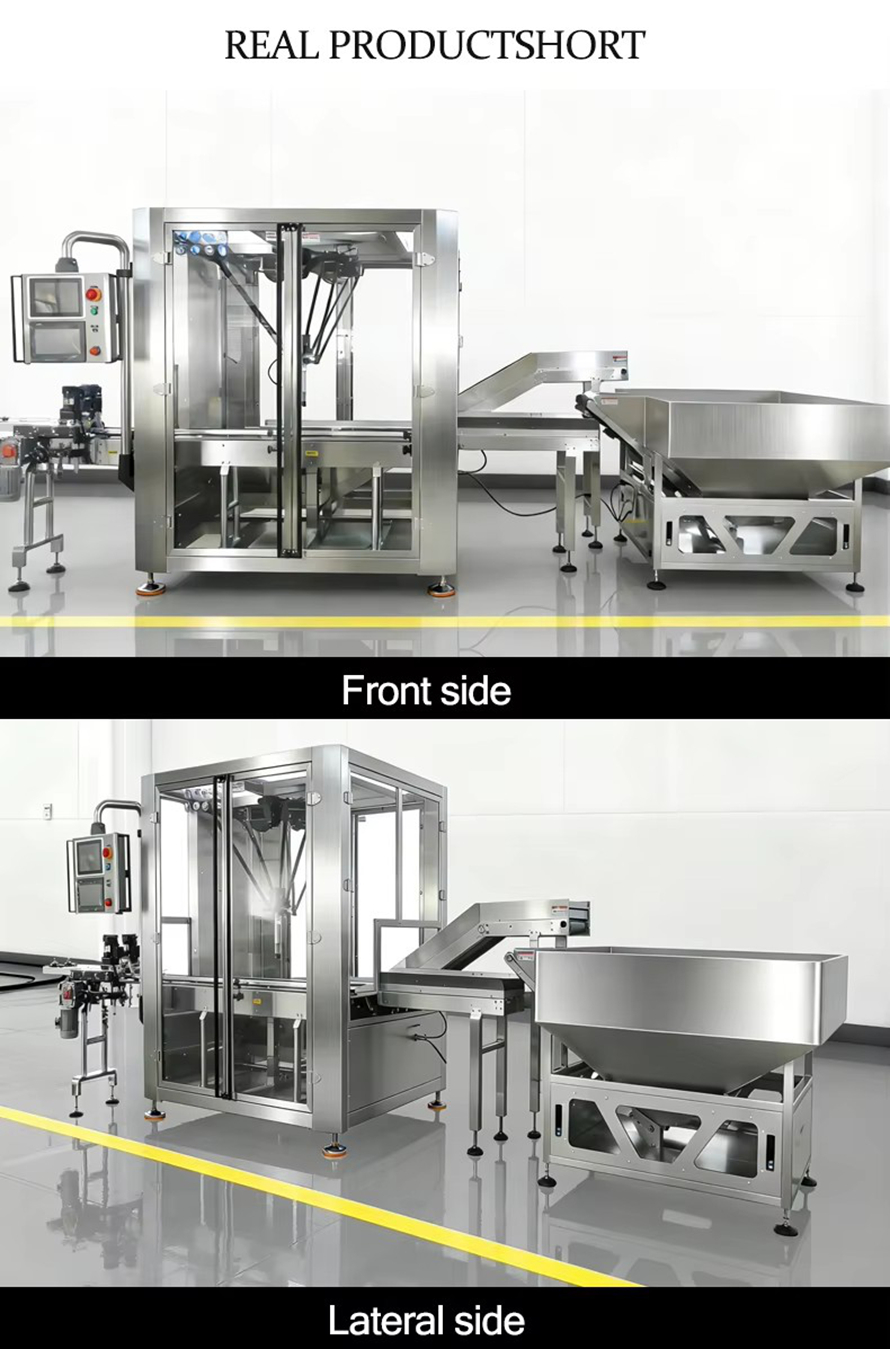

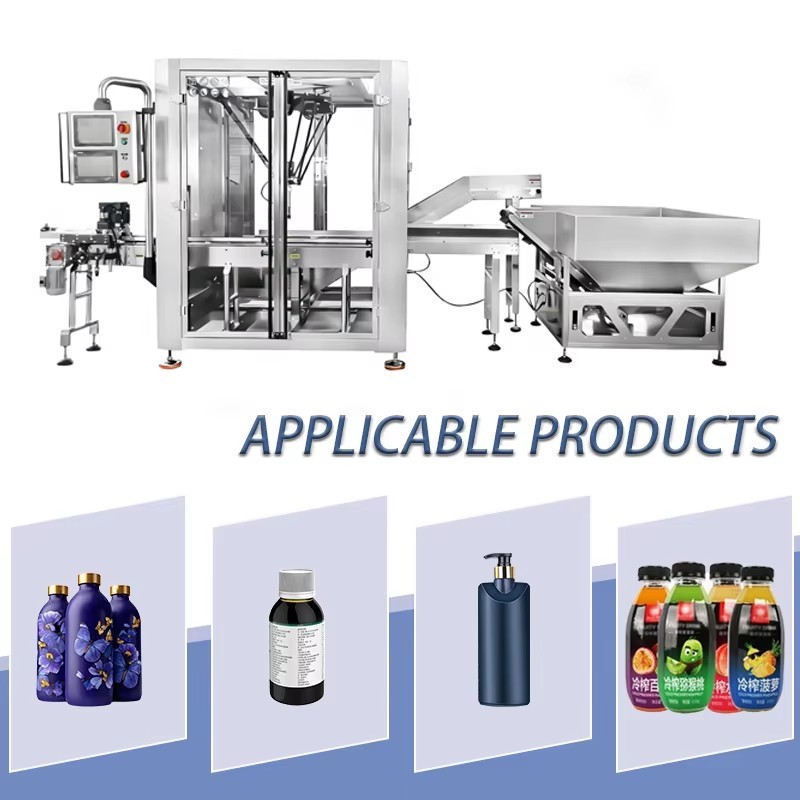

Product Overview
Automatic robotic arm bottle feeding and orienting machine is designed for efficient, automated container sorting, positioning and transferring in modern packaging production lines. It delivers stable, high-speed performance and seamless integration with filling, labeling and capping systems, widely used in food, beverage, cosmetic and pharmaceutical industries.
Key Features
- High Efficiency:Processing capacity reaches 40–60 bottles per minute, suitable for medium to high-speed production.
- Precision Operation:±0.5mm repeat positioning accuracy ensures consistent bottle orientation and reduces product waste.
- Wide Compatibility:Adaptable to PET, HDPE, glass and metal containers of various shapes and sizes, with fast changeover.
- Sturdy & Hygienic:Constructed with 304 stainless steel, meeting strict hygiene standards for food and pharmaceutical applications.

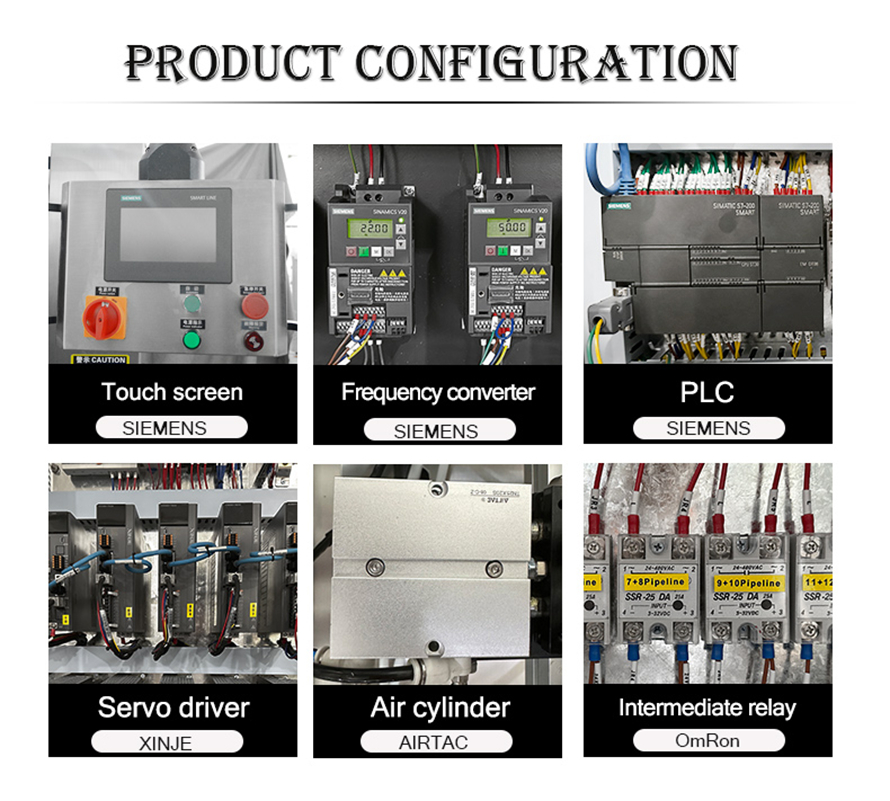

- Intelligent Control:Equipped with reliable electrical control system, user-friendly operation and low maintenance.

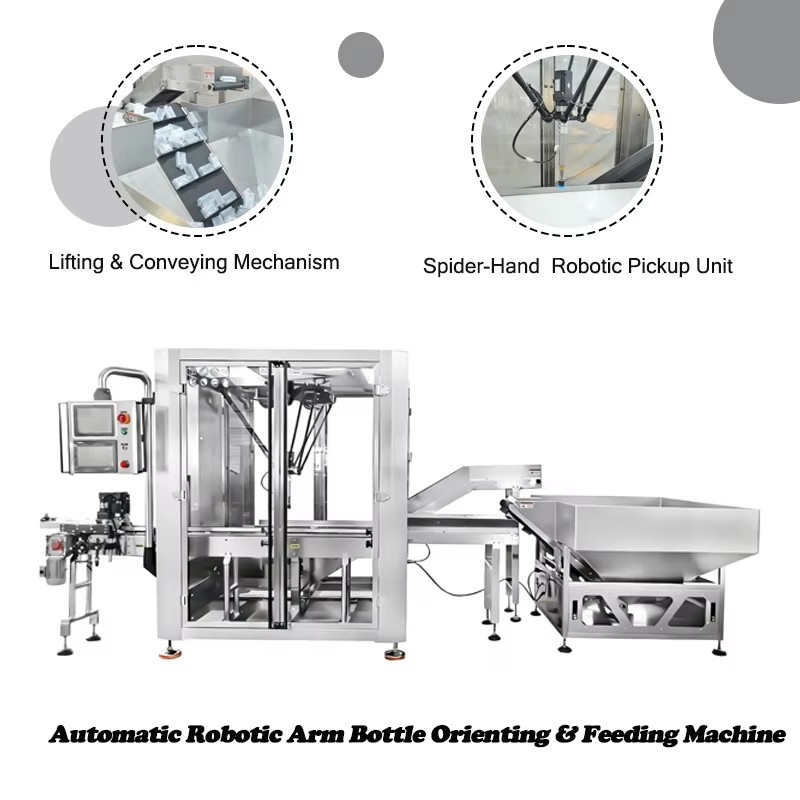

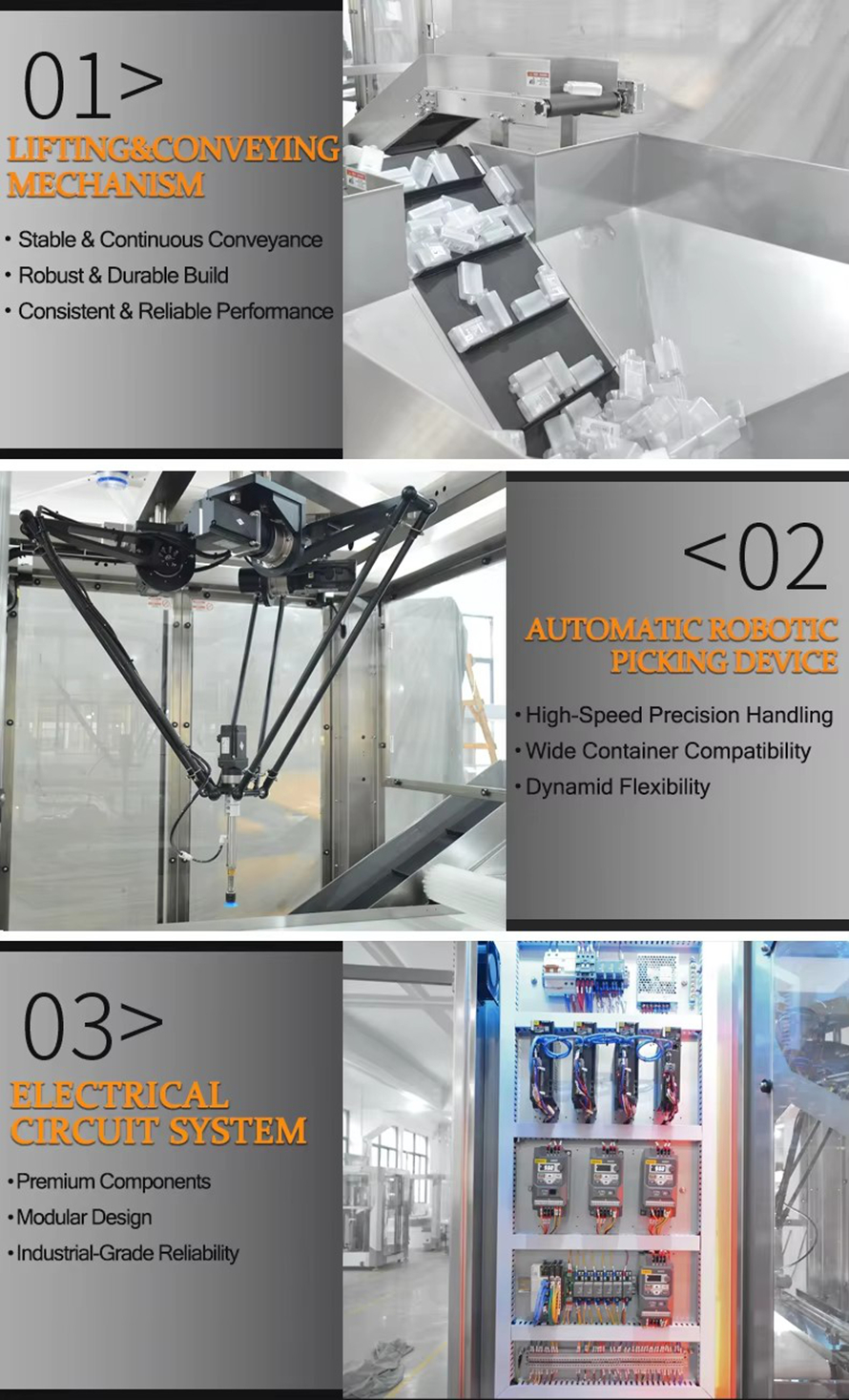

Main Modules
- Lifting & Conveying: MechanismStable bulk container feeding with continuous and smooth material transfer.
- Robotic Picking & Orienting Unit:Multi-gripper robotic arm for accurate bottle handling and positioning.
- Electrical Control: SystemPremium components, modular design and strong anti-interference ability for reliable industrial performance.
Applications
Ideal for automated packaging lines in food & beverage, personal care, household chemicals and pharmaceutical manufacturing.
|
Number of Axes
|
3+1
|
|
Applicable Products
|
PET bottles, glass bottles, bag,carton
|
|
Mounting Method
|
Overhead Mounted
|
|
Reach
|
500-1100mm
|
|
Rated Load
|
3KG
|
|
Maximum Payload
|
6KG
|
|
Boxing Speed
|
20–30 cycles (depending on the product)
|
|
Rotation Range
|
±360°
|
|
Work Envelope
|
φ500-1100mm 300-400mm
|
Standard Cycle Time
|
0.1kg / 0.25s
|
|
1kg / 0.36s
|
|
2kg / 0.37s
|
|
4kg / 0.41s
|
|
6kg / 0.43s
|
|
Working Enviroment
|
-10-60° RH≤80%
|
|
Air Pressure
|
0.5-0.8KPA
|
|
Voltage
|
AC220V 50Hz
|
|
Power
|
6KW
|
|
Dimension
|
2400*1400*2100mm
|
|
Net Weight
|
700KG
|
