Product Overview

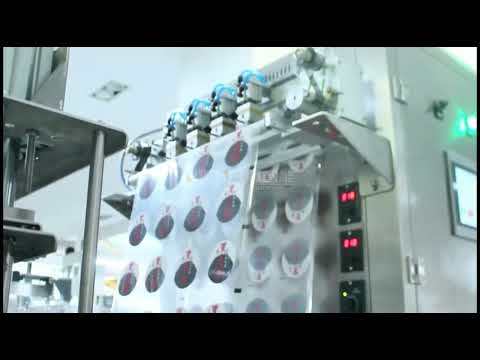

The RIFU Automatic Roll-Film Plastic Cup Filling & Sealing Machine is a fully integrated, high-efficiency packaging system engineered for medium-to-large food and beverage manufacturers. This turnkey solution combines automatic cup unscrambling, precision piston filling, roll-film feeding & inline coding, continuous heat sealing, and automatic finished cup ejection into one compact, reliable line, eliminating manual intervention, cutting labor costs, and ensuring consistent, leak-proof packaging for a wide range of cup-shaped products.
Designed for versatility, our roll-film cup sealer handles liquids, semi-fluids, and viscous products with ease—from mung bean soup, milk tea, and yogurt to porridge, pudding, and condiments. With stepless speed regulation, quick product changeover, and food-grade construction, it scales seamlessly with your production demands, delivering stable performance, easy maintenance, and consistent quality for every batch.
Key Competitive Advantages
1.Fully Automated Operation
Integrated auto cup feeding, filling, sealing and ejection minimize manual work, slash labor costs by up to 80% and reduce human error.
2.High-Speed Stable Production
2500–3600 CPH with stepless speed control, adjustable for various orders and products.The
3.Precision Piston Filling
±≤1% dosing accuracy ensures consistent filling volume, less waste and stable product quality.
4.Wide Film Compatibility
Compatible with PP/PE/PET/aluminum foil films; tool-free changeover cuts downtime and improves flexibility.
5.Food-Grade & Safe Design
Food-grade 304 stainless steel construction, fully GMP & HACCP compliant.
6.Easy Operation & Low Maintenance
Intuitive PLC touchscreen for easy control; robust parts ensure long service life and low upkeep.
Wide Application
It is widely used for packaging a variety of cup-shaped products across industries:
Frequently Asked Questions
Q1: What products can this roll-film cup filling sealing machine handle?
A1: The machine handles liquids, semi-fluids, and viscous products—mung bean soup, milk tea, bubble tea, yogurt, jelly, juice, and sauce cups. Roll-film sealing provides an airtight, leak-proof seal suitable for refrigerated distribution and retail display.
Q2: How does roll-film sealing differ from pre-cut lid sealing?
A2: Roll-film uses a continuous film roll—the machine automatically pulls, cuts, and heat-seals the film onto each cup. It eliminates the need for pre-made lids, reduces per-cup material cost, and simplifies inventory management. Roll-film also supports inline date coding directly on the seal.
Q3: What cup materials and sizes are compatible?
A3: The machine works with PET, PP, and PS plastic cups as well as coated paper cups, with diameters typically from 50mm to 180mm. Film materials include PE, PP, and PET/PE laminates. Cup height is adjustable for different fill volumes on the same diameter.
