Product Overview

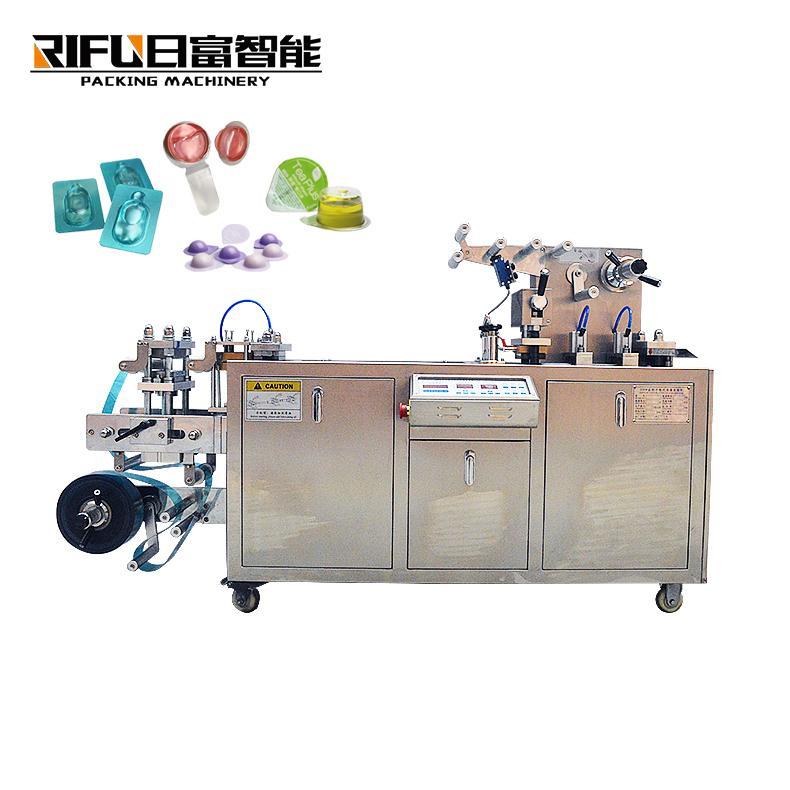

This automatic blister packing machine is a multi-functional packaging device for mass production. It fits solid, liquid, paste and irregular products, supporting three common packaging modes to meet multi-industry packaging requirements.
Wide Application Scope
It is applicable for products and industries as follows:
>Pharmaceutical & Healthcare: Tablets, capsules, large honey pills and health supplements
>Food Industry: Candies and small granular food
>Cosmetics: Liquid and paste cosmetic samples
>Medical Devices: Disposable syringes and small medical consumables
>Special Products: Irregular-shaped products that cannot be packed by ordinary machines
Core Intelligent Configuration & Advantages
Equipped with PLC controller, frequency converter and touch screen panel, the machine allows easy parameter adjustment and real-time operation monitoring. It reduces manual errors, ensures consistent packaging quality and lowers failure rate compared with semi-automatic machines.
Complete Automatic Working Flow
Full automatic operation with no manual intervention:
Automatic Film Unwinding → Preheating → Blister Forming → Material Filling → Heat Sealing → Finished Product Cutting
| Model | RF DPP 80-105 | RF DPP 110-150 | RF DPP 155-180 | RF DPP 185-260 |
| Punch frequency | 10-33TPM | 10-35TPM |
10-35TPM |
10-40TPM |
| Max. forming area | 105*70MM | 145*110MM | 175-110MM | 250-140MM |
| Max. forming depth | 26MM or Customized |
|||
| Filling volume | 0.5-75ML or Customized |
|||
| Stroke range | 30-80MM | 50-120MM | 50-120MM | 40-140MM |
| Air pressure | 0.4-0.6MPA |
|||
| Total power supply | 2.8KW 220V 50HZ | 3.8KW 380V 50HZ | 3.8KW 380V 50HZ |
8.5KW 380V 50HZ |
| PVC hard film | (0.15-0.5)*110MM |
(0.15-0.5)*150MM |
(0.15-0.5)*180MM |
(0.15-0.5)*250MM |
| PTP aluminum film | (0.02-0.035)*110MM |
(0.02-0.035)*150MM |
(0.02-0.035)*180MM |
(0.02-0.035)*250MM |
| Dialysis paper | 50-100G*110MM |
50-100G*150MM |
50-100G*180MM |
50-100G*250MM |
| Mould cooling | Tap water or Recycling water |
|||
| Outline dimension | 1840*590*1100MM | 2315*635*1405MM | 2550*640*1600MM | 3250*710*1700MM |
| Weight | 420KG | 820KG | 870KG | 1400KG |
