Automatic multi lane liquid sachet packing machine

Item No.: RF-YTH
Min.Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Guangzhou
Payment Terms: T/T,Western Union,paypal

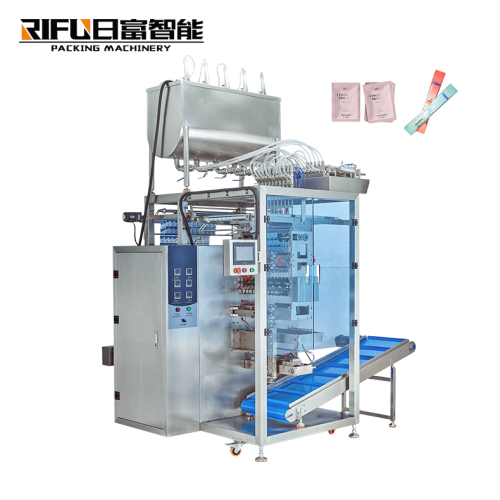

Multilane liquid sachet packing machine

Used for packing liquid and paste materials, such as honey, ketchup, sauce, shampoo, hair conditioner, jelly bar, jam, yoghurt, facial cream, liquid chocolate, ice cream paste, etc.
1. PLC and touch screen control system, friendly man-machine interface, easy to operate and repair.
2. Independent temperature controller with heat balance enables different packing materials.
3. Packing speed and bag length can be adjusted,no need part changes.
4. Automatically complete the whole process, including bag forming, material measuring and filling, bag sealing, film cutting, finished product output.

Voltage (V/Hz) 2KW 220V 50HZ
Bag size W:10-30mm L:50-180mm (Customizable)
Max. roll film width 280mm
Packing speed 30-50bag/min
Air pressure 0.8MPa
Gas consumption
Weight 350KG
Outline dimension 1400*1000*2000mm

Guangdong Rifu Intelligent Equipment Co.,Ltd is an efficient and technology enterprise. Professional manufacturing filling machine, capping machine, labeling machine, filling sealing machine, vacuum packing machine, vertical packing machine, heat shrinking packingmachine, cellophane wrapping machine, etc. We have own excellent team and a high level of equipment manufacturing personnel. Dedicated to strict quality control and thoughtful customer service. Has many of the world's countries and regions to establish long-term and friendly business.
