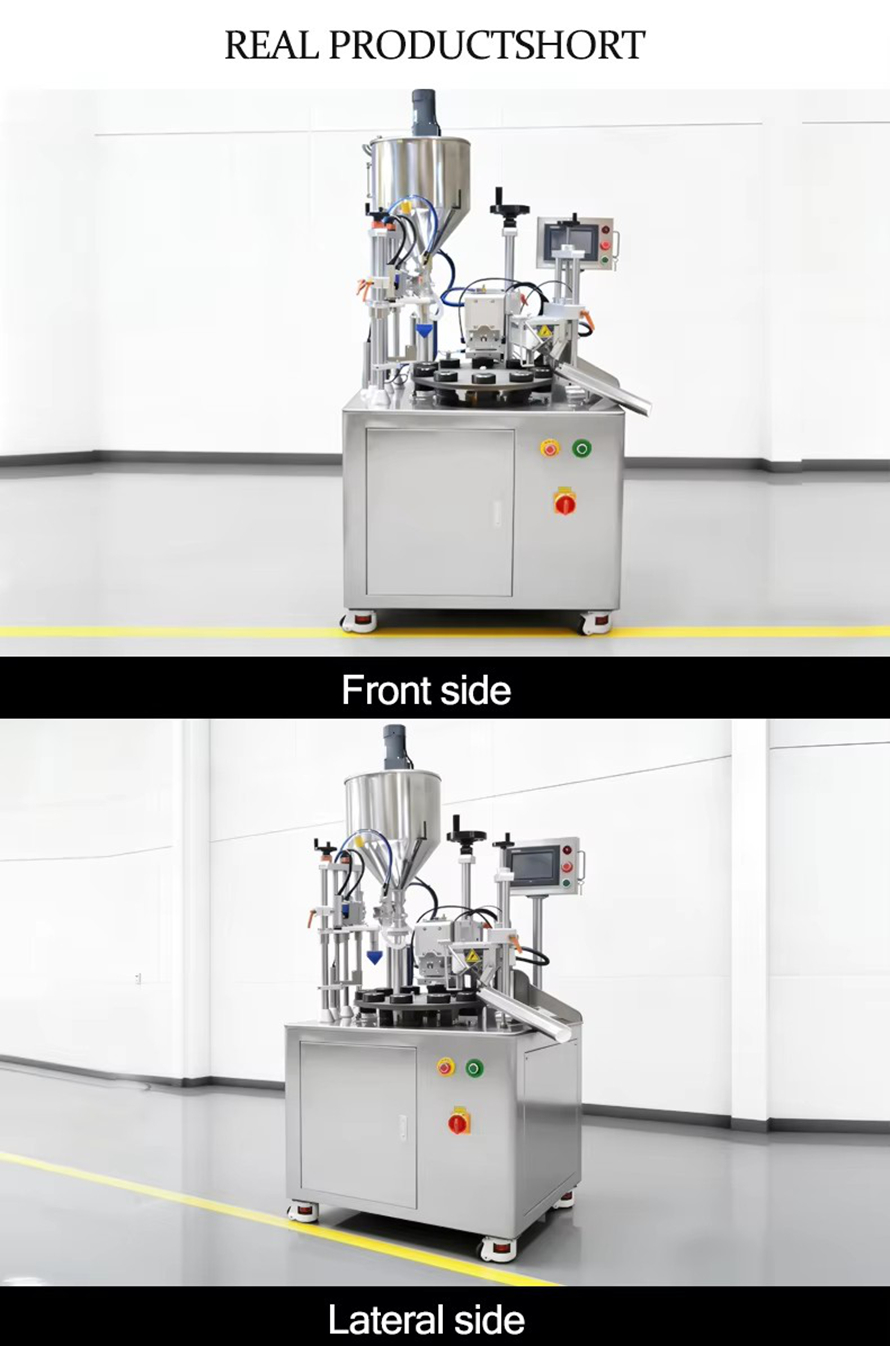

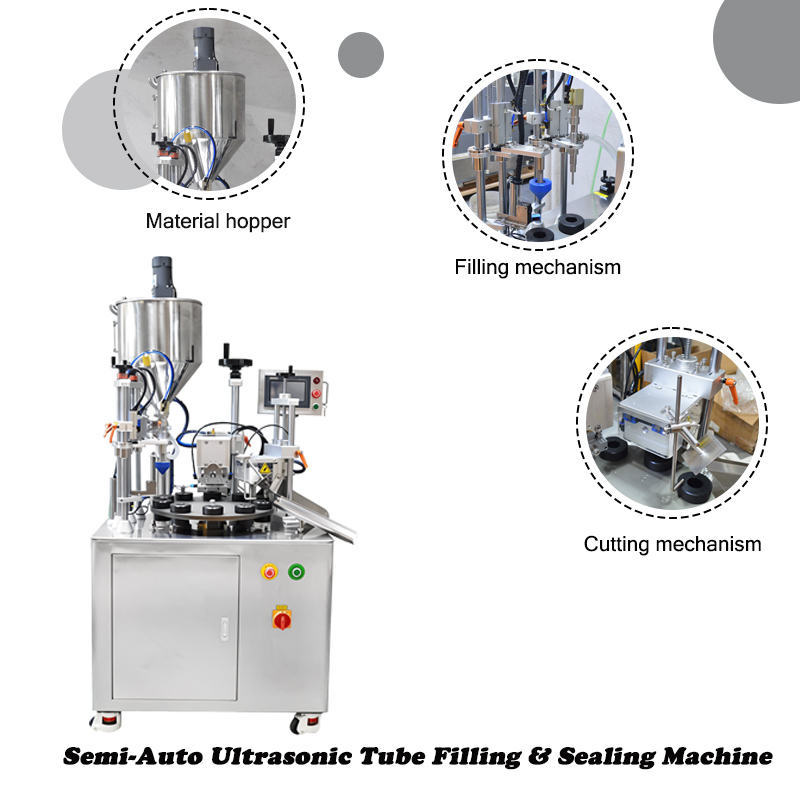

This semi-automatic ultrasonic tube filling and sealing machine is designed for efficient and stable packaging of plastic, laminate and composite tubes. It features high-precision filling, reliable ultrasonic sealing, and easy operation, making it ideal for small to medium production in cosmetics, pharmaceuticals, and personal care industries.
Key Features

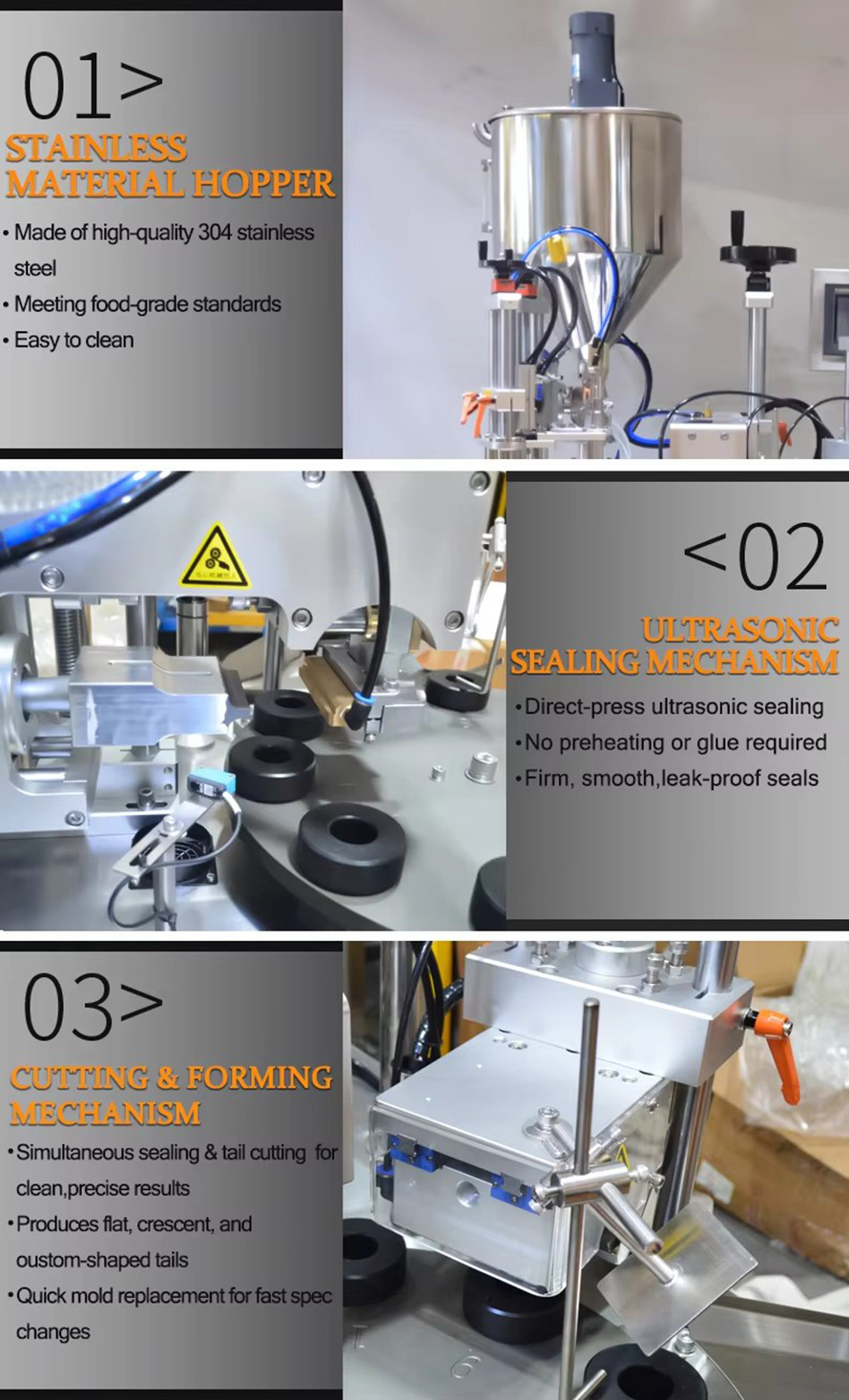

Stable ultrasonic sealing for firm, leak-proof and aesthetic tube ends
High filling accuracy with low error rate
Compact structure, simple operation and low maintenance
Quick mold change for different tube sizes and tail shapes

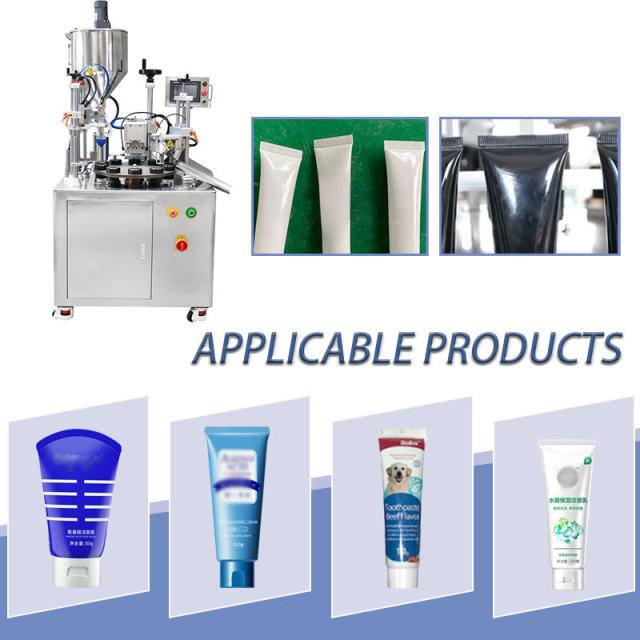

Widely used for creams, gels, pastes and lotions
Machine Material
304 stainless steel
Filling Range
5–300ml (customizable)
Suitable Materials
Plastic composite tubes, aluminum-plastic tubes
Production Capacity
20–30 tubes/minute
Filling Accuracy
±1% (depending on actual material and fill volume)
Sealing Diameter
16–50mm (customizable)
Tube Length
50–250mm (customizable)
Operating Pressure & Air Consumption
0.6MPa, 0.35m³/min
Voltage & Power
AC220V, 2.2KW

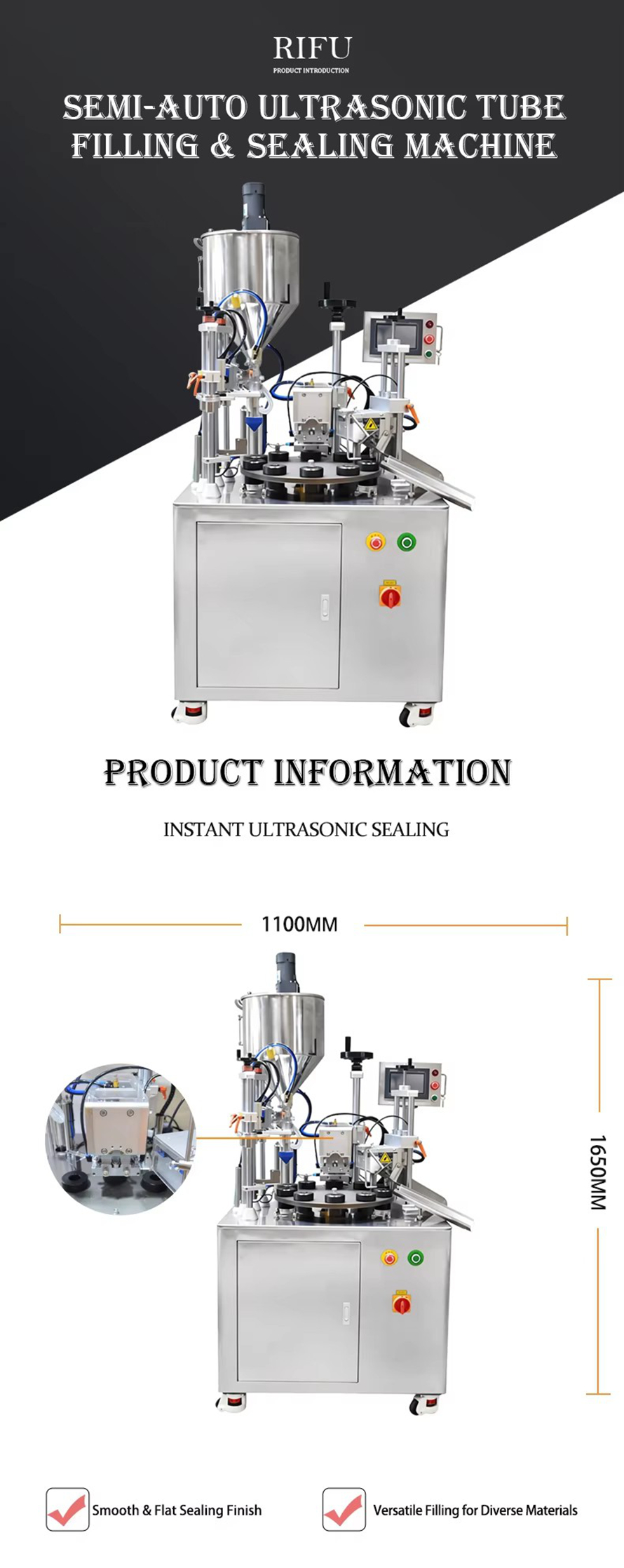

Machine Dimensions
1100*900*1650mm
Net Weight
300kg
