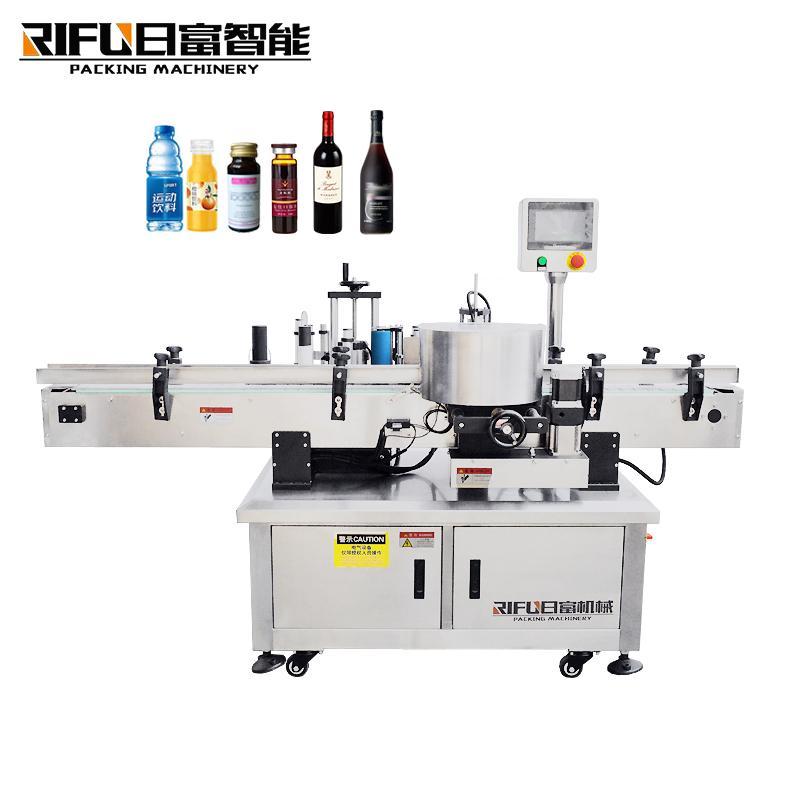

Product Overview

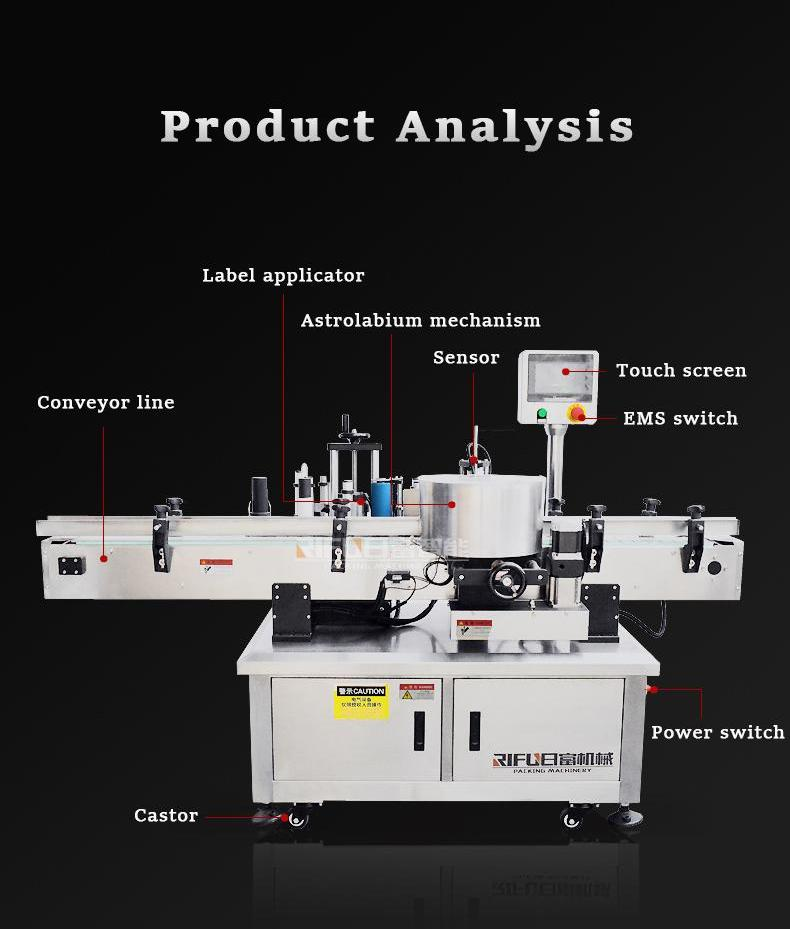

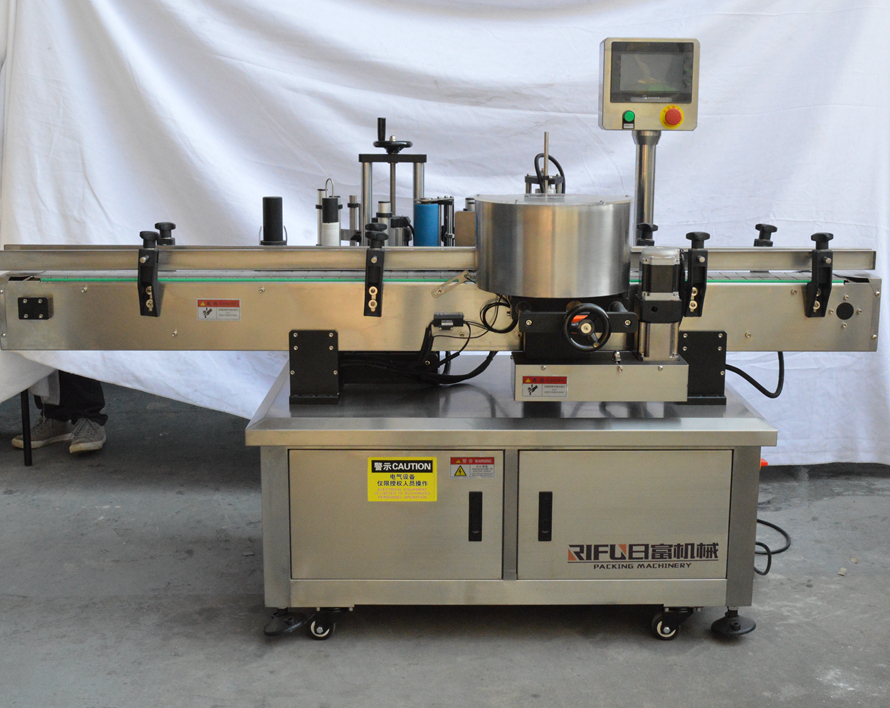

The star disc positioning round bottle labeling machine is an automatic high-speed wrap-around sticker labeling equipment.Equipped with a rotary star wheel positioning feeding structure, it delivers stable high-speed labeling with precision up to ±1mm.
Adopting Simens PLC control and Panasonic Servo drive system, the whole machine is made of stainless steel, featuring easy operation, strong versatility and complete after-sales service. It supports non-standard customization and can be used alone or matched with filling, capping and coding machines to form a complete automatic packaging production line, widely used in food, beverage, condiment, pharmaceutical, cosmetic and daily chemical industries.
Wide Application
Suitable for all kinds of cylindrical plastic and glass round bottles:
|
Supply Power(V/Hz) |
AC 220/50 110/60 |
|
Power (W) |
1200 |
|
The application of bottle (mm) |
Outer diameter12-100mm Height30-200mm(Can be customized) |
|
The application of label (mm) |
Height15-100mm Length20～300mm(Can be customized) |
|
Production speed(bottle/min) |
70-110（Depends on bottle size） |
|
Dimension（L×W×H）(mm) |
1600×1100×1300 |
|
Net weight(kg) |
200 |
Q1. What containers fit this labeling machine?
For 30–80mm cylindrical glass & plastic round bottles, widely applied in food, cosmetic, pharmaceutical industries. Custom bottle sizes are supported.
Q2. How accurate is the labeling?
±1mm high labeling precision. Servo label feeding matched with photoelectric sensor avoids wrinkled, bubbled or skewed labels.
Q3. Control system configuration?

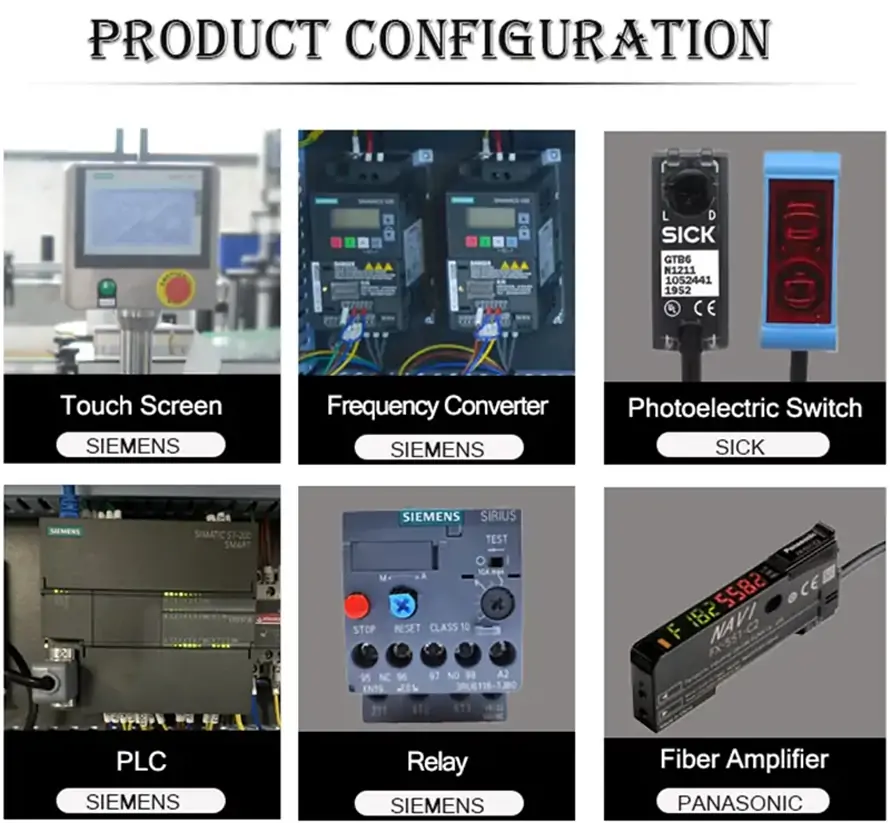

Siemens PLC + color touch screen. Label dispensing head adopts servo motor drive; conveyor uses variable frequency motor for stable, low-noise high-speed labeling.
Q4. Easy to change bottle types?
Multiple production recipes stored on touch screen, one-click switch without manual mechanical adjustment.
Q5. Machine material
Main frame and product contact parts adopt SUS304 stainless steel, anti-corrosion and easy to sanitize.
Have specific labeling demands? [Contact our engineers] for customized labeling solutions!
